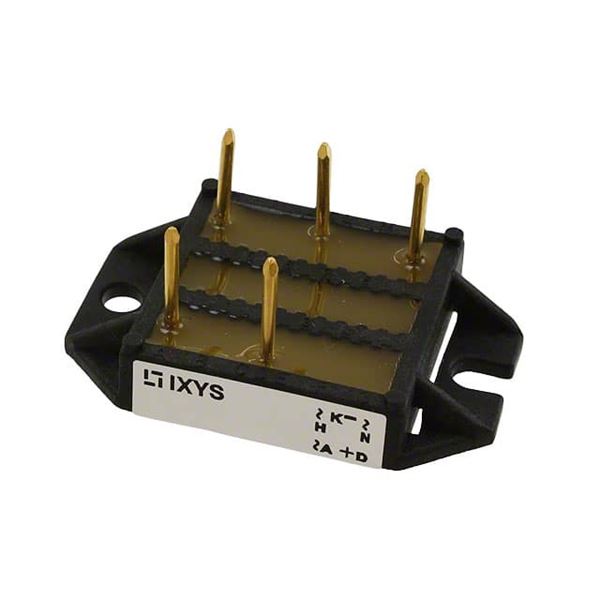

VUE75-06NO7

SKU: 22525

Manufacturer: Littelfuse

Rectifier Bridge Diode Single 600V 86A 5-Pin ECO-PAC 1

1300 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.80.00
Automotive	No
PPAP	No
Bridge Type	Three Phase
Diode Type	Fast Recovery Rectifier
Configuration	Single
Peak Reverse Repetitive Voltage (V)	600
Peak Average Forward Current (A)	86
Peak Non-Repetitive Forward Surge Current (A)	275
Peak Forward Voltage (V)	1.57@30A
Peak Reverse Current (uA)	250
Peak Reverse Recovery Time (ns)	35(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	150
Original Package	ECO-PAC 1
Pin Count	5
Standard Package Method	ECO-PAC 1
Terminal Form	Screw
Package Height	9
Package Length	47
Package Width	30.3
