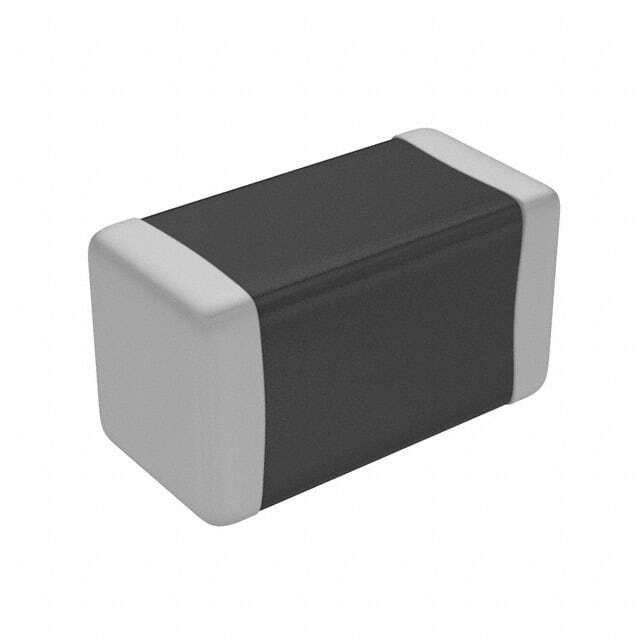

V33MLA1206H Littelfuse

V33MLA1206H

SKU: 45512

Manufacturer: Littelfuse

Var MLV 26VAC/33VDC 180A 49V 1206 SMD T/R

Download sample

Request Free Samples

2640 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8533.40.80.70
Automotive	No
PPAP	No
Technology	Multilayer
Varistor Voltage (V)	49
Maximum AC Voltage Rating (V)	26
Maximum DC Voltage Rating (V)	33
Clamping Voltage (V)	75
Clamping Current (A)	1
Maximum Surge Current (A)	180
Capacitance Value	390pF
Energy (J)	0.8
Operating Temperature-Min	-55
Operating Temperature-Max	125
Size Code	1206
Packing Method	Tape and Reel
Length (mm)	3.2
Depth (mm)	1.6
Height (mm)	1.8
