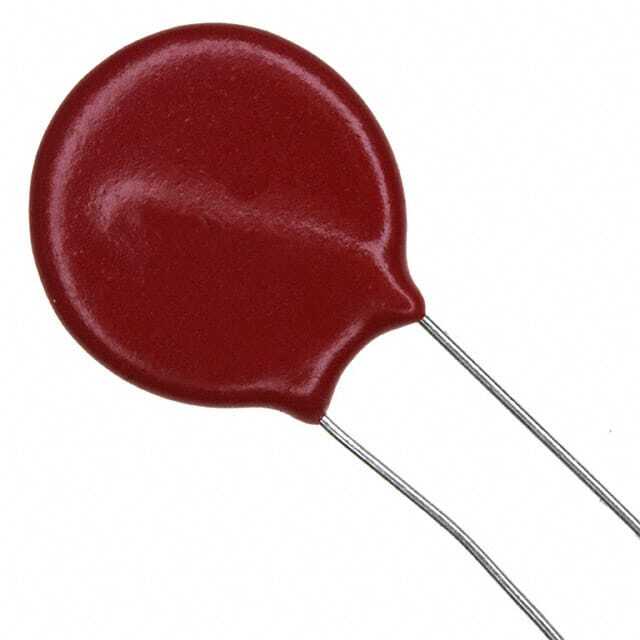

V300LT20AP Littelfuse

V300LT20AP

SKU: 17153

Manufacturer: Littelfuse

Var MOV 300VAC/405VDC 4500A 517V Thru-Hole Radial T/R

Download sample

Request Free Samples

2830 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
HTS	8533.40.80.70
Automotive	No
PPAP	No
Technology	Metal Oxide
Varistor Voltage (V)	517
Maximum AC Voltage Rating (V)	300
Maximum DC Voltage Rating (V)	405
Clamping Voltage (V)	775
Clamping Current (A)	50
Maximum Surge Current (A)	4500
Capacitance Value	400pF
Energy (J)	77
Operating Temperature-Min	-55
Operating Temperature-Max	85
Packing Method	Tape and Reel
Product Diameter (mm)	17
Depth (mm)	5.6
Height (mm)	22.5
Lead Style	Radial
Terminal Form	Through Hole
