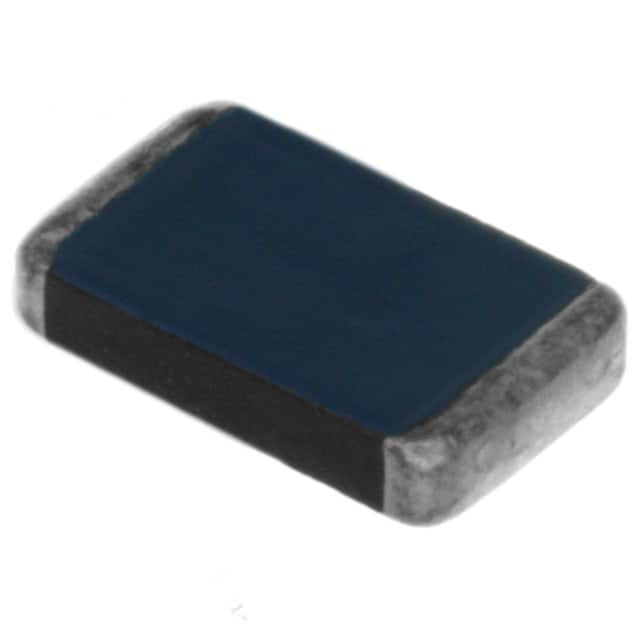

V240CH8T Littelfuse

V240CH8T

SKU: 128571

Manufacturer: Littelfuse

Var MOV 150VAC/200VDC 250A 240V SMD T/R

Download sample

Request Free Samples

53360 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8533.40.40.00
SVHC	Yes
Automotive	No
PPAP	No
Technology	Metal Oxide
Varistor Voltage (V)	240
Maximum AC Voltage Rating (V)	150
Maximum DC Voltage Rating (V)	200
Clamping Voltage (V)	395
Clamping Current (A)	10
Maximum Surge Current (A)	250
Capacitance Value	150pF
Energy (J)	5
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	8.51
Depth (mm)	5.26
Height (mm)	2.03
