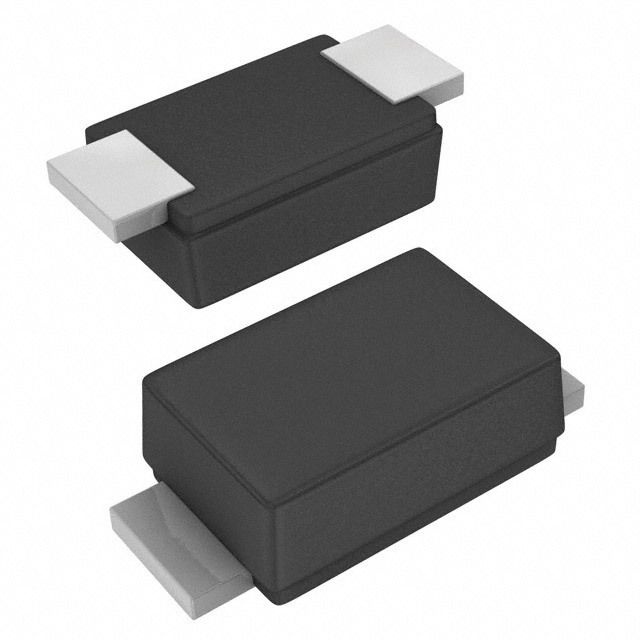

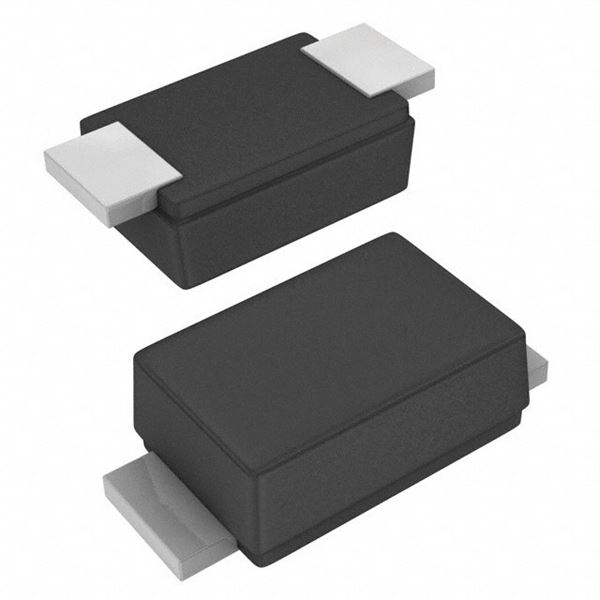

TPSMF4L8.5A

SKU: 144406

Manufacturer: Littelfuse

TVS Diode Single Uni-Dir 8.5V 2KW Automotive 2-Pin SOD-123F T/R

146310 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	Yes
PPAP	Unknown
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	9.44
Maximum Clamping Voltage (V)	14.4
Maximum Reverse Stand-Off Voltage (V)	8.5
Maximum Peak Pulse Current (A)	25.7
Maximum Reverse Leakage Current (uA)	20
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	2000
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SOD-123F
Pin Count	2
Standard Package Method	SOD
Terminal Form	Surface Mount
Package Height	0.98(Max)
Package Length	3.1(Max)
Package Width	2(Max)
PCB changed	2
