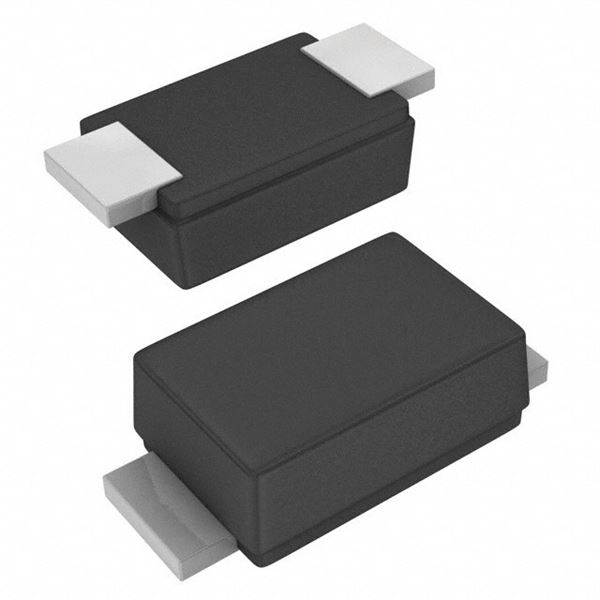

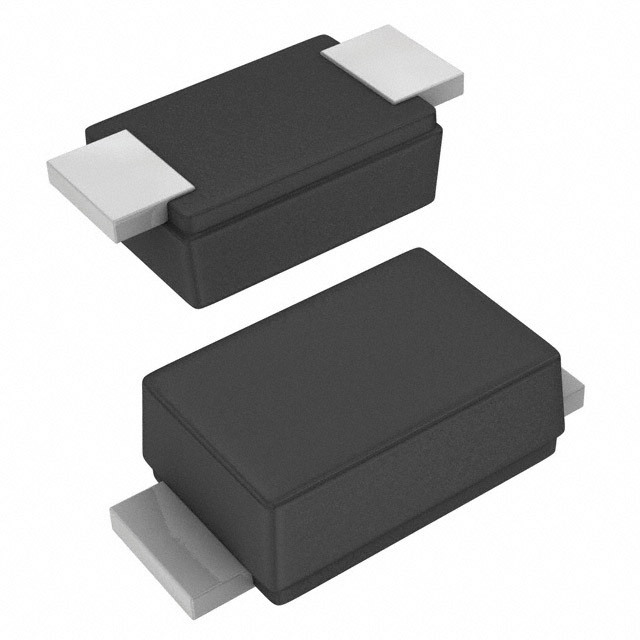

TPSMF4L6.0A

SKU: 130246

Manufacturer: Littelfuse

TVS Diode Single Uni-Dir 6V 2KW Automotive 2-Pin SOD-123F T/R

2150 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Yes
PPAP	Unknown
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	6.67
Maximum Clamping Voltage (V)	10.3
Maximum Reverse Stand-Off Voltage (V)	6
Maximum Peak Pulse Current (A)	35.9
Maximum Reverse Leakage Current (uA)	800
Test Current (mA)	10
Peak Pulse Power Dissipation (W)	2000
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SOD-123F
Pin Count	2
Standard Package Method	SOD
Terminal Form	Surface Mount
Package Height	0.98(Max)
Package Length	3.1(Max)
Package Width	2(Max)
PCB changed	2
