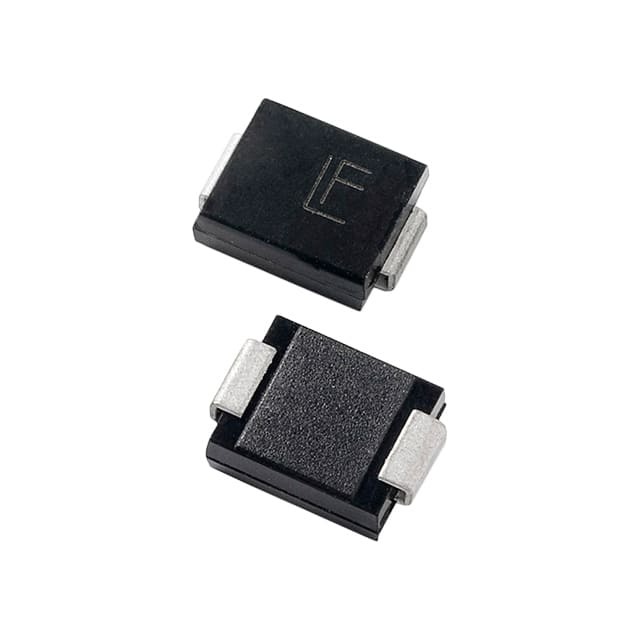

TPSMC33CA

SKU: 158620

Manufacturer: Littelfuse

TVS Diode Single Bi-Dir 28.2V 1.5KW Automotive 2-Pin SMC T/R

4450 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Yes
PPAP	Unknown
Configuration	Single
Direction Type	Bi-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	31.4
Maximum Clamping Voltage (V)	45.7
Maximum Reverse Stand-Off Voltage (V)	28.2
Peak Forward Surge Current (A)	200
Maximum Peak Pulse Current (A)	33.3
Maximum Reverse Leakage Current (uA)	1
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	1500
Operating Temperature-Min	-65
Operating Temperature-Max	150
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	SMC
Pin Count	2
Standard Package Method	DO-214-AB
Terminal Form	Surface Mount
Package Height	2.42(Max)
Package Length	7.11(Max)
Package Width	6.22(Max)
PCB changed	2
