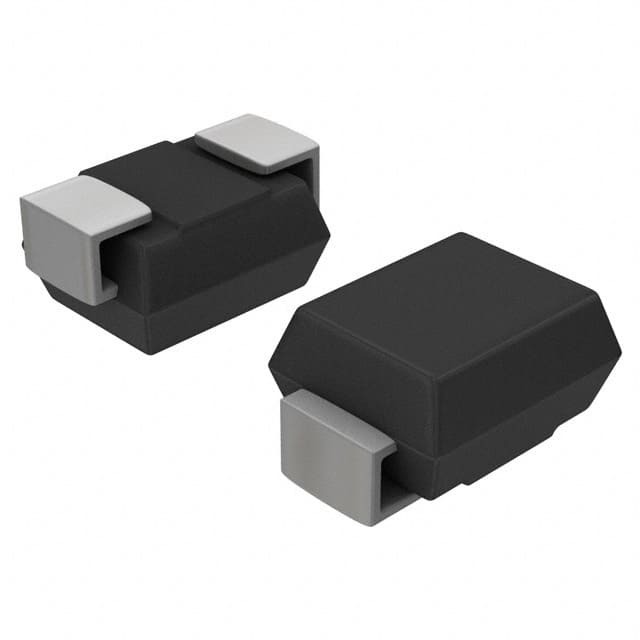

SZP6SMB75AT3G

SKU: 144283

Manufacturer: Littelfuse

TVS Diode Single Uni-Dir 64.1V 600W Automotive 2-Pin SMB T/R

1630 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Yes
PPAP	Yes
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	71.3
Maximum Clamping Voltage (V)	103
Maximum Reverse Stand-Off Voltage (V)	64.1
Maximum Peak Pulse Current (A)	5.8
Maximum Reverse Leakage Current (uA)	5
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	600
Operating Temperature-Min	-65
Operating Temperature-Max	150
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	SMB
Pin Count	2
Standard Package Method	DO-214-AA
Terminal Form	Surface Mount
Package Height	2.2
Package Length	4.32
Package Width	3.56
PCB changed	2
