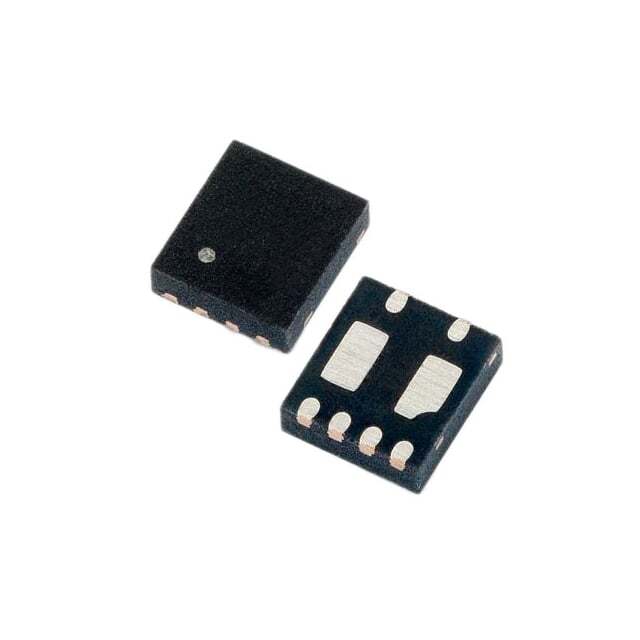

SP1224-01UTG

SKU: 94583

Manufacturer: Littelfuse

ESD Suppressor Diode TVS Uni-Dir 22V 6-Pin UDFN EP T/R

3410 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.30.80.00
Automotive	No
PPAP	No
Type	TVS
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Maximum Working Voltage (V)	22
Minimum Breakdown Voltage (V)	24
Maximum Breakdown Voltage (V)	27
Maximum Clamping Voltage (V)	37
Maximum Peak Pulse Current (A)	100
Maximum Leakage Current (uA)	0.5
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	3700
Capacitance Value (pF)	850
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	UDFN EP
Pin Count	6
Terminal Form	Surface Mount
Package Height	0.53
Package Length	1.8
Package Width	2
