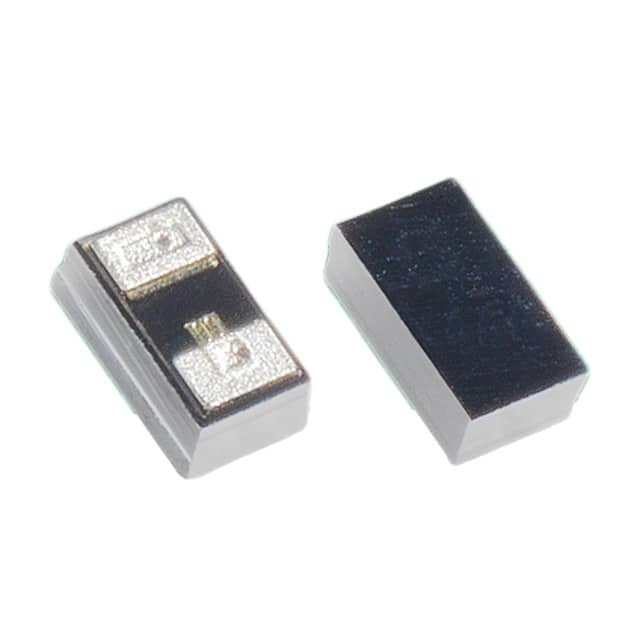

SP1044-01WTG Littelfuse

SP1044-01WTG

SKU: 52404

Manufacturer: Littelfuse

ESD Suppressor Diode TVS Uni-Dir 6V 2-Pin Case 01005 T/R

Request Free Samples

1320 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8536.30.80.00
Automotive	No
PPAP	No
Type	TVS
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Maximum Working Voltage (V)	6
Maximum Clamping Voltage (V)	9.3(Typ)
Maximum Peak Pulse Current (A)	3
Maximum Leakage Current (uA)	0.5
Capacitance Value (pF)	35
Operating Temperature-Min	-40
Operating Temperature-Max	125
Original Package	Case 01005
Pin Count	2
Terminal Form	Surface Mount
Package Height	0.17
Package Length	0.43
Package Width	0.23
