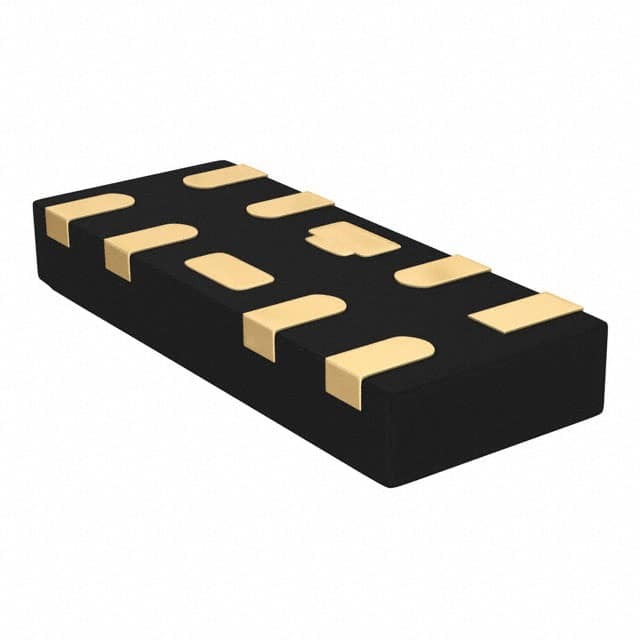

SP1004U-ULC-04UTG Littelfuse

SP1004U-ULC-04UTG

SKU: 127851

Manufacturer: Littelfuse

ESD Suppressor Diode TVS Uni-Dir 7V Automotive 10-Pin DFN T/R

Download sample

Request Free Samples

1700 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	Yes
PPAP	Unknown
Type	TVS
Configuration	Quad Common Anode
Direction Type	Uni-Directional
Number of Elements per pcs	4
Maximum Working Voltage (V)	7
Maximum Clamping Voltage (V)	9.2(Typ)
Maximum Peak Pulse Current (A)	2
Maximum Leakage Current (uA)	0.05
Test Current (mA)	1
Capacitance Value (pF)	0.22
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Fail Safe Protection	No
Original Package	DFN
Pin Count	10
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.55(Max)
Package Length	2.6(Max)
Package Width	1.1(Max)
PCB changed	10
