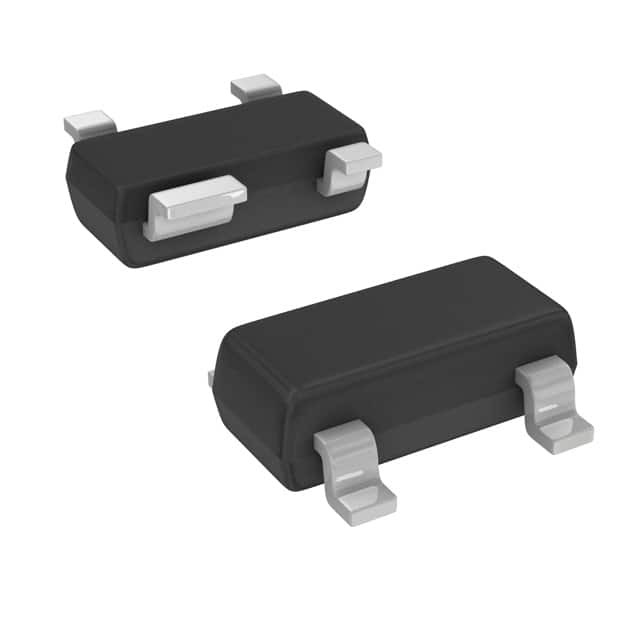

SP0503BAHT

SKU: 28844

Manufacturer: Littelfuse

ESD Suppressor Diode TVS Uni-Dir 5.5V 4-Pin SOT-143 T/R

1460 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	TVS
Configuration	Triple Common Anode
Direction Type	Uni-Directional
Number of Elements per pcs	3
Maximum Response Time (ns)	1
Maximum Working Voltage (V)	5.5(Min)
Maximum Clamping Voltage (V)	8
Maximum Leakage Current (uA)	0.1
Maximum Power Dissipation (mW)	225
Capacitance Value (pF)	30(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	SOT-143
Pin Count	4
Standard Package Method	SOT-143
Terminal Form	Surface Mount
Package Height	1.07(Max)
Package Length	3.04(Max)
Package Width	1.4(Max)
PCB changed	4
