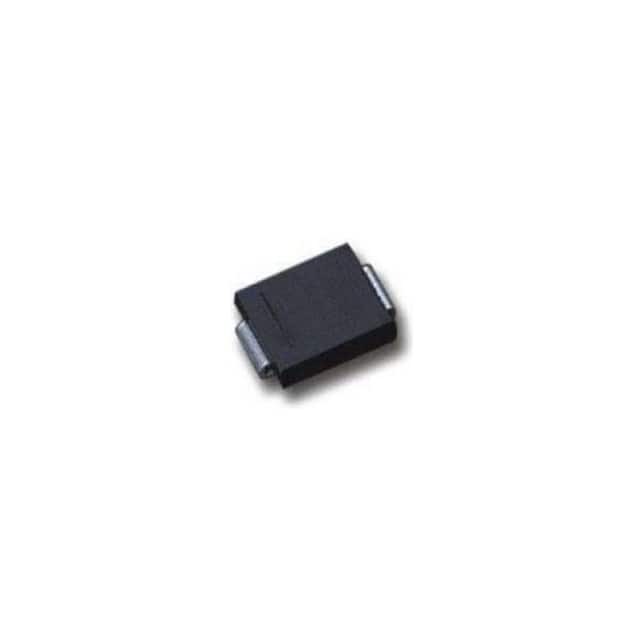

SMDJ160A

SKU: 78027

Manufacturer: Littelfuse

TVS Diode Single Uni-Dir 160V 3KW 2-Pin DO-214AB T/R

3170 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	178
Maximum Clamping Voltage (V)	259
Maximum Reverse Stand-Off Voltage (V)	160
Maximum Peak Pulse Current (A)	11.6
Maximum Reverse Leakage Current (uA)	2
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	3000
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Tape and Reel
Pin Count	2
Standard Package Method	DO-214-AB
Original Package	DO-214AB
Terminal Form	Surface Mount
Package Height	2.42(Max)
Package Length	7.11(Max)
Package Width	6.22(Max)
PCB changed	2
