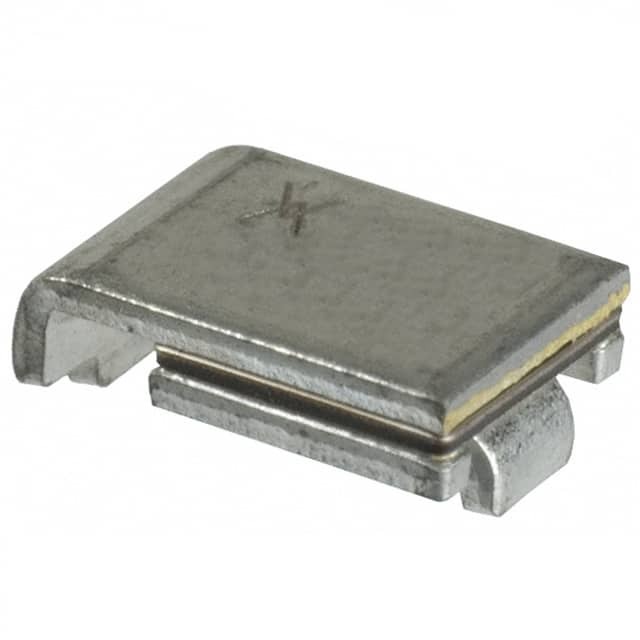

SMD250F-2

SKU: 49988

Manufacturer: Littelfuse

PTC Resettable Fuse 2.5A(hold) 5A(trip) 15VDC 40A 1.9W 25s 0.035Ohm SMD Solder Pad 3425 T/R Automotive

720 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8533.40.80.70
Automotive	Unknown
PPAP	Unknown
Voltage Rating-Max	15VDC
Current Rating-Max(A)	40
Hold Current (A)	2.5
Trip Current (A)	5
Minimum Initial Resistance (Ohm)	0.035
Maximum Post Trip Resistance (Ohm)	0.085
Typical Power Dissipation (W)	1.9(Max)
Maximum Trip Time (s)	25@8A
Terminal Form	Solder Pad
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Size (mm)	9.4 X 6.71 X 3
Length (mm)	9.4(Max)
Depth (mm)	6.71(Max)
Height (mm)	3(Max)
Case Code - in	3425
