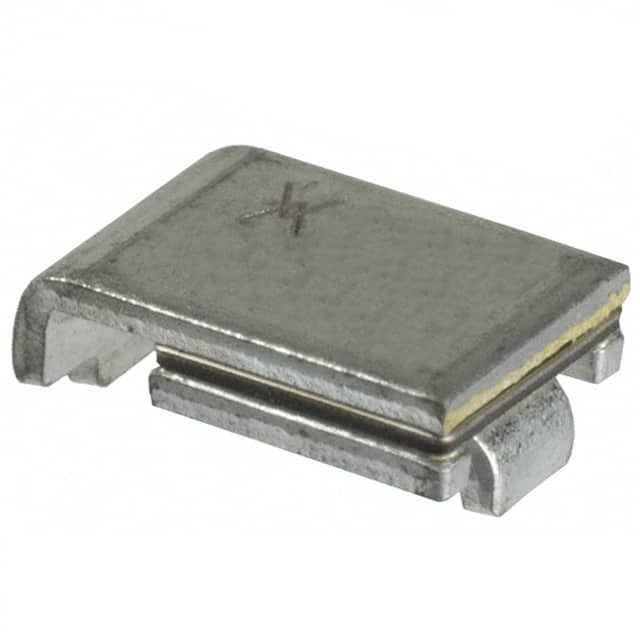

SMD125F-2

SKU: 28635

Manufacturer: Littelfuse

PTC Resettable Fuse 1.25A(hold) 2.5A(trip) 15VDC 40A 1.7W 2s 0.07Ohm SMD Solder Pad 2920 T/R Automotive

3590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8533.40.80.70
Automotive	Unknown
PPAP	Unknown
Voltage Rating-Max	15VDC
Current Rating-Max(A)	40
Hold Current (A)	1.25
Trip Current (A)	2.5
Minimum Initial Resistance (Ohm)	0.07
Maximum Post Trip Resistance (Ohm)	0.25
Typical Power Dissipation (W)	1.7(Max)
Maximum Trip Time (s)	2@8A
Terminal Form	Solder Pad
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Size (mm)	7.98 X 5.44 X 3
Length (mm)	7.98(Max)
Depth (mm)	5.44(Max)
Height (mm)	3(Max)
Case Code - in	2920
