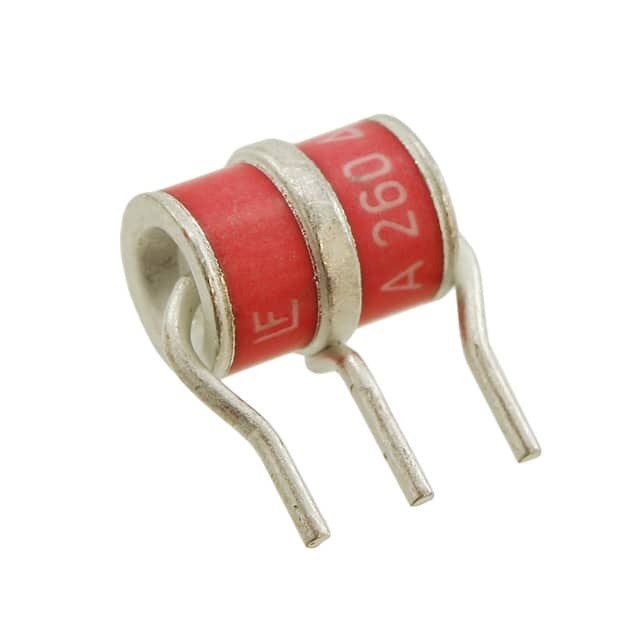

SL1021A230R

SKU: 120521

Manufacturer: Littelfuse

Gas Discharge Tubes 230VDC 10kADC 10AAC 1.5pF Radial Thru-Hole

4120 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Maximum Impulse Sparkover Voltage @ 100V/s (V)	450
Maximum Impulse Sparkover Voltage @ 1KV/s (V)	650
Typical DC Sparkover Voltage @ 100V/s (V)	230
Typical Impulse Discharge Current @ 8/20us @ 10Times (kA)	10
Typical AC Discharge Current @ 1s @ <= 10Times (A)	10
Minimum Insulation Resistance @ 100V (GOhm)	10
Maximum Capacitance @ 1MHz (pF)	1.5
Typical Impulse Life @ 10/1000us (Times)	300
Number of Electrodes	3
Terminal Form	Radial
Terminal Pitch (mm)	4.4
Number of Terminals	3
Operating Temperature-Min	-40
Packing Method	Tray
Operating Temperature-Max	90
Lead Diameter (mm)	1
Length (mm)	12.4
Depth (mm)	8.1
Height (mm)	15
Failsafe Protection	No
