SK016R

SKU: 14374

Manufacturer: Littelfuse

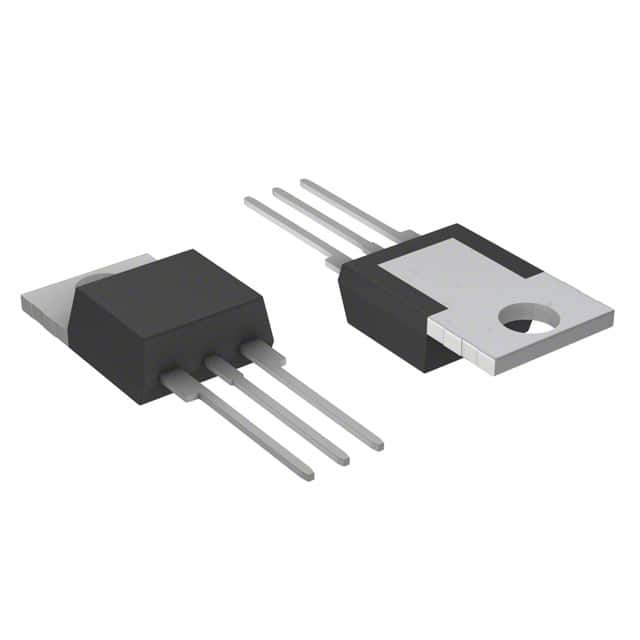

Thyristor SCR 1KV 225A 3-Pin(3+Tab) TO-220AB Non-Isolated

840 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Maximum Gate Trigger Voltage (V)	1.5
Maximum Gate Trigger Current (mA)	30
Surge Current Rating (A)	225
Maximum Holding Current (mA)	40
Repetitive Peak Reverse Voltage (V)	1000(Min)
Peak On-State Voltage (V)	1.6
Repetitive Peak Forward Blocking Voltage (V)	1000(Min)
Rated Average On-State Current (A)	10
Repetitive Peak Off-State Current (mA)	0.02
Phase Control	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Pin Count	3
Standard Package Method	TO-220
Original Package	TO-220AB Non-Isolated
Terminal Form	Through Hole
Package Height	9.4(Max)
Package Length	10.67(Max)
Package Width	4.78(Max)
PCB changed	3
