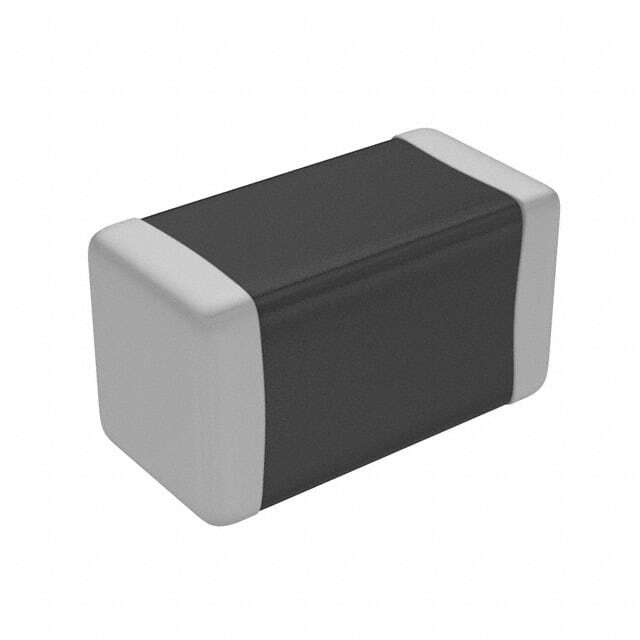

SE350

SKU: 59410

Manufacturer: Littelfuse

Gas Discharge Tubes 350VDC 0.5kADC 0.5pF Solder Pad SMD

3460 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.30.80.00
Automotive	No
PPAP	No
Maximum Impulse Sparkover Voltage @ 100V/s (V)	900
Maximum Impulse Sparkover Voltage @ 1KV/s (V)	1150
Typical DC Sparkover Voltage @ 100V/s (V)	350
Typical Impulse Discharge Current @ 8/20us @ 10Times (kA)	0.5
Minimum Insulation Resistance @ 100V (GOhm)	1
Maximum Capacitance @ 1MHz (pF)	0.5
Number of Electrodes	2
Terminal Form	Solder Pad
Number of Terminals	2
Operating Temperature-Min	-40
Packing Method	Tape and Reel
Operating Temperature-Max	90
Length (mm)	3.2
Depth (mm)	1.6
Height (mm)	1.6
Failsafe Protection	No
