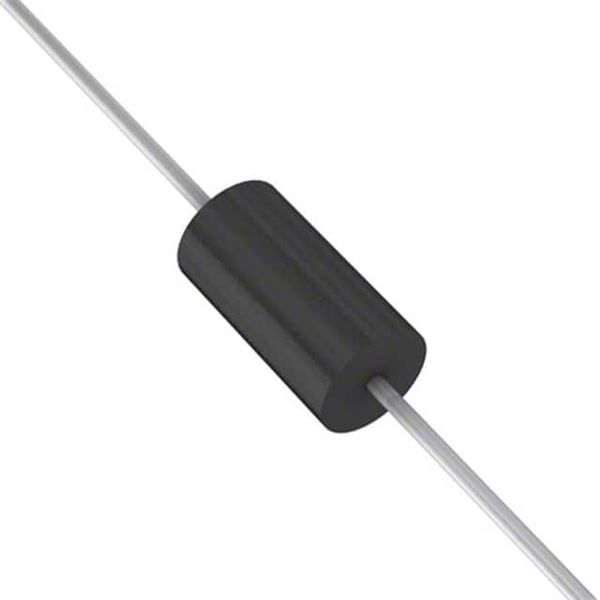

SA5.0CA

SKU: 14193

Manufacturer: Littelfuse

TVS Diode Single Bi-Dir 5V 500W 2-Pin DO-15 T/R

2470 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Bi-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	6.4
Maximum Clamping Voltage (V)	9.2
Maximum Reverse Stand-Off Voltage (V)	5
Maximum Forward Voltage (V)	3.5
Maximum Peak Pulse Current (A)	55.4
Maximum Reverse Leakage Current (uA)	1200
Test Current (mA)	10
Peak Pulse Power Dissipation (W)	500
Operating Temperature-Min	-65
Operating Temperature-Max	175
Maximum Power Dissipation (mW)	3000
Product Weight (g)	0.4
Packing Method	Tape and Reel
Pin Count	2
Standard Package Method	DO-204-AC
Original Package	DO-15
Diameter	3.6(Max)
Terminal Form	Through Hole
Package Length	7.6(Max)
PCB changed	2
