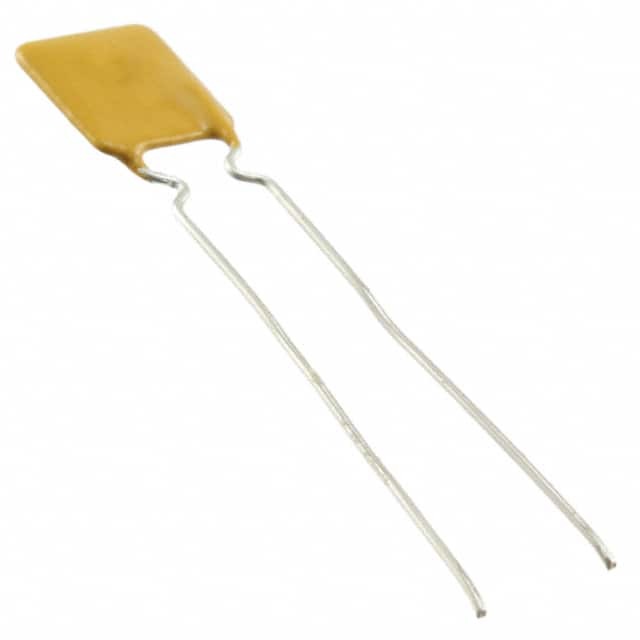

RGEF250

SKU: 23795

Manufacturer: Littelfuse

PTC Resettable Fuse 2.5A(hold) 4.7A(trip) 16VDC 100A 1W 5s 0.022Ohm Radial 8.9 X 3 X 12.8mm Bag

3340 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8533.40.80.70
Automotive	No
PPAP	No
Voltage Rating-Max	16VDC
Current Rating-Max(A)	100
Hold Current (A)	2.5
Trip Current (A)	4.7
Minimum Initial Resistance (Ohm)	0.022
Maximum Initial Resistance (Ohm)	0.035
Maximum Post Trip Resistance (Ohm)	0.053
Typical Power Dissipation (W)	1
Maximum Trip Time (s)	5@12.5A
Terminal Form	Radial
Terminal Pitch (mm)	5.8(Max)
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Bag
Size (mm)	8.9 X 3 X 12.8
Wire Form	Inside Crimp Standoff
Lead Diameter (mm)	0.51
Length (mm)	8.9(Max)
Depth (mm)	3(Max)
Height (mm)	12.8(Max)
Seated Plane Height (mm)	12.8(Max)
