RF3076-000 Littelfuse

RF3076-000

SKU: 73317

Manufacturer: Littelfuse

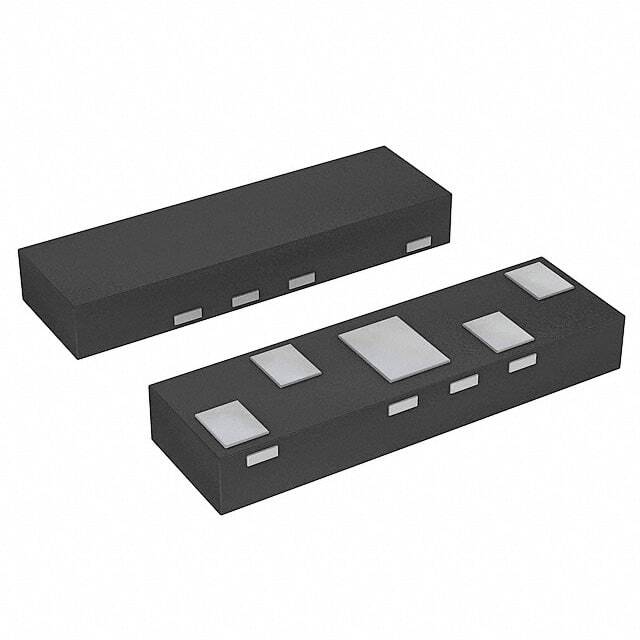

ESD Suppressor Diode Array Uni-Dir 7V Automotive 5-Pin DFN T/R

Download sample

Request Free Samples

1460 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.30.80.00
Type	Diode Array
Configuration	Quad
Direction Type	Uni-Directional
Number of Elements per pcs	4
Maximum Working Voltage (V)	7
Maximum Clamping Voltage (V)	9.2
Maximum Leakage Current (uA)	0.05
Capacitance Value (pF)	0.22
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	DFN
Pin Count	5
Standard Package Method	DFN
Terminal Form	Surface Mount
Package Height	0.27(Max)
Package Length	2
Package Width	0.6
PCB changed	5
