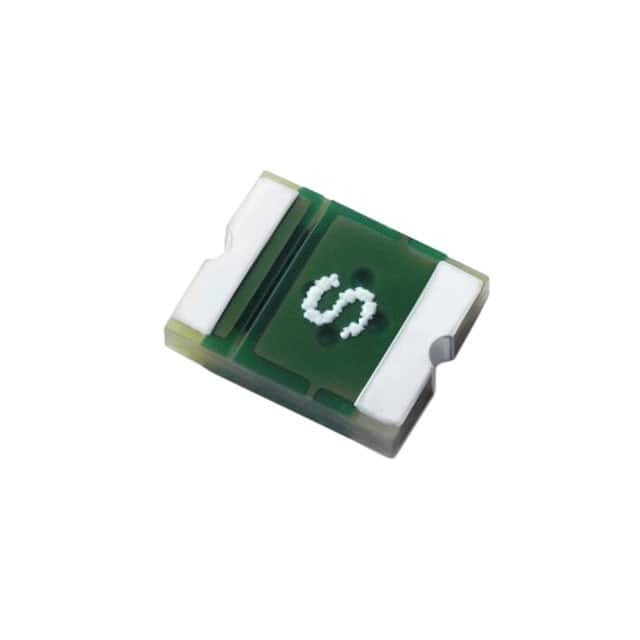

RF2515-000

SKU: 137076

Manufacturer: Littelfuse

PTC Resettable Fuse 4.5A(hold) 9A(trip) 12VDC 10A 1W 20s 0.002Ohm SMD Solder Pad 1210 T/R

2700 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8536.10.00.40
Automotive	No
PPAP	No
Voltage Rating-Max	12VDC
Current Rating-Max(A)	10
Hold Current (A)	4.5
Trip Current (A)	9
Minimum Initial Resistance (Ohm)	0.002
Maximum Initial Resistance (Ohm)	0.0085
Typical Power Dissipation (W)	1(Max)
Maximum Trip Time (s)	20@12A
Terminal Form	Solder Pad
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Size (mm)	3.43 X 2.8 X 0.8
Length (mm)	3.43(Max)
Depth (mm)	2.8(Max)
Height (mm)	0.8(Max)
Case Code - in	1210
