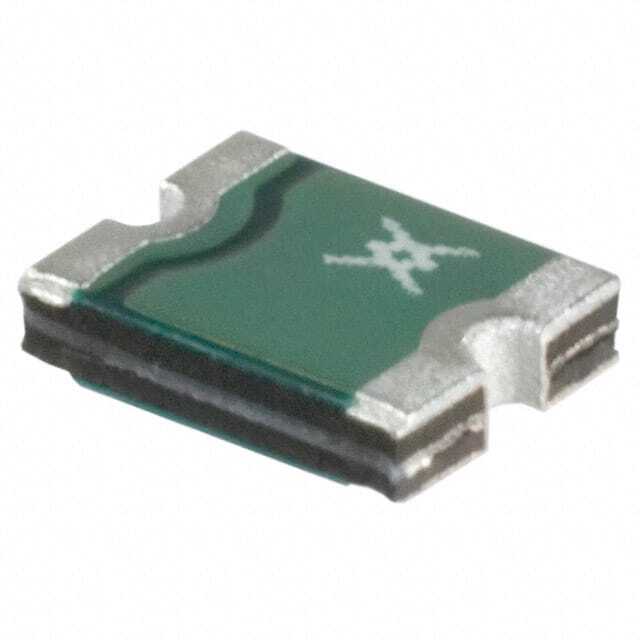

RF1355-000

SKU: 94465

Manufacturer: Littelfuse

PTC Resettable Fuse 1.1A(hold) 2.2A(trip) 6VDC 40A 0.8W 0.2s 0.07Ohm SMD Solder Pad 1210 T/R Automotive

1970 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Voltage Rating-Max	6VDC
Current Rating-Max(A)	40
Hold Current (A)	1.1
Trip Current (A)	2.2
Minimum Initial Resistance (Ohm)	0.07
Maximum Post Trip Resistance (Ohm)	0.21
Typical Power Dissipation (W)	0.8(Max)
Maximum Trip Time (s)	0.2@8A
Terminal Form	Solder Pad
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Size (mm)	3.43 X 2.8 X 0.48
Length (mm)	3.43(Max)
Depth (mm)	2.8(Max)
Height (mm)	0.48(Max)
Case Code - in	1210
