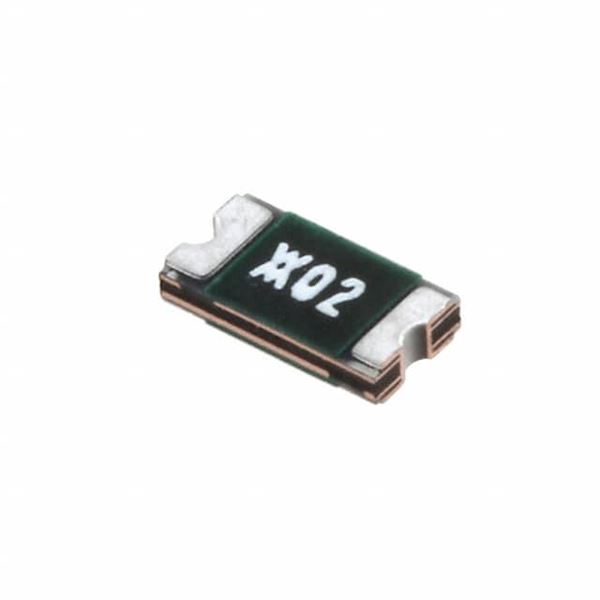

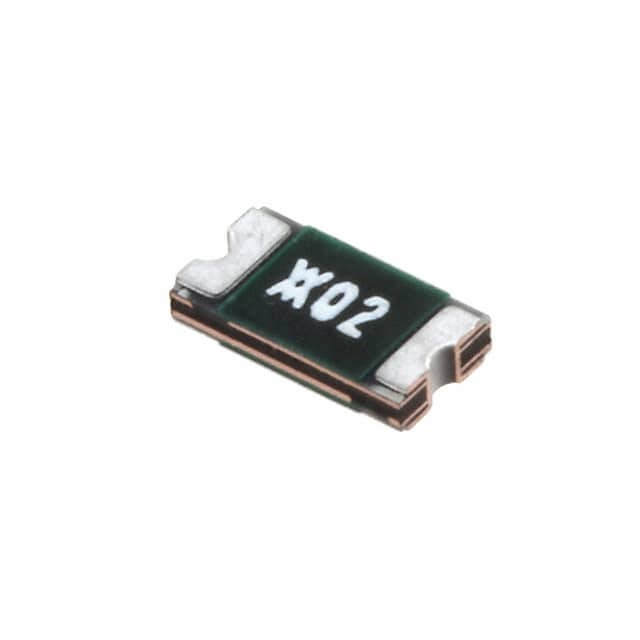

RF1345-000

SKU: 106004

Manufacturer: Littelfuse

PTC Resettable Fuse 0.2A(hold) 0.42A(trip) 24VDC 100A 0.6W 0.1s 0.65Ohm SMD Solder Pad 1206 T/R Automotive

1470 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Unknown
PPAP	Unknown
Voltage Rating-Max	24VDC
Current Rating-Max(A)	100
Hold Current (A)	0.2
Trip Current (A)	0.42
Minimum Initial Resistance (Ohm)	0.65
Maximum Post Trip Resistance (Ohm)	3.1
Typical Power Dissipation (W)	0.6(Max)
Maximum Trip Time (s)	0.1@8A
Terminal Form	Solder Pad
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Size (mm)	3.4 X 1.8 X 0.82
Length (mm)	3.4(Max)
Depth (mm)	1.8(Max)
Height (mm)	0.82(Max)
Case Code - in	1206
