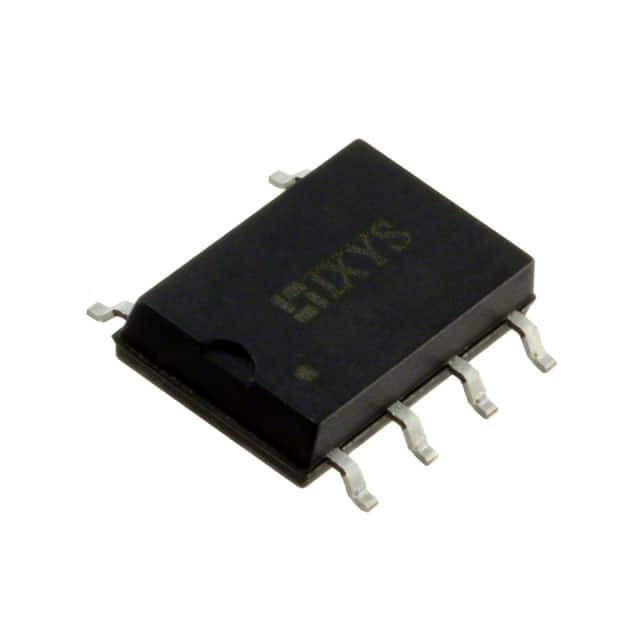

PLA171PTR

SKU: 144071

Manufacturer: Littelfuse

Solid State Relay 50mA 1.5V DC-IN 0.1A 800V AC/DC-OUT Automotive 6-Pin FPAK T/R

2480 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.41.00.60
Automotive	Unknown
PPAP	Unknown
Input Type	DC
Minimum Input Voltage (V)	0.9
Maximum Input Voltage (V)	1.5
Maximum Input Current (mA)	50
Maximum Output Voltage (V)	800
Maximum Output Current (A)	0.1
Output Device	MOSFET
Output Type	AC
I/O Isolation Voltage (V)	5000(RMS)
Maximum Off-State Leakage Current (uA)	1
Typical Input to Output Capacitance (pF)	3
Maximum Power Dissipation (mW)	800
Maximum Turn-On Time (ms)	5
Maximum Turn-Off Time (ms)	5
Circuit Arrangement	1 Form A
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Standard Package Method	FPAK
Original Package	FPAK
Pin Count	6
Terminal Form	Surface Mount
Package Height	2.16
Package Length	9.65
Package Width	6.35
PCB changed	6
