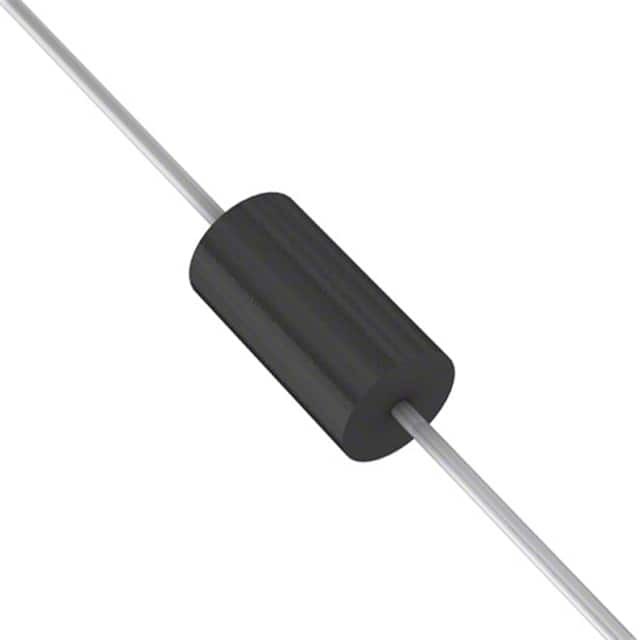

P6KE20CA-B

SKU: 59298

Manufacturer: Littelfuse

TVS Diode Single Bi-Dir 17.1V 600W 2-Pin DO-15 Bulk

2330 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Bi-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	19
Maximum Clamping Voltage (V)	27.7
Maximum Reverse Stand-Off Voltage (V)	17.1
Maximum Forward Voltage (V)	3.5
Maximum Peak Pulse Current (A)	22
Maximum Reverse Leakage Current (uA)	1
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	600
Operating Temperature-Min	-55
Operating Temperature-Max	175
Maximum Power Dissipation (mW)	5000
Product Weight (g)	0.4
Packing Method	Bulk
Original Package	DO-15
Pin Count	2
Standard Package Method	DO-204-AC
Diameter	3.6(Max)
Terminal Form	Through Hole
Package Length	7.6(Max)
PCB changed	2
