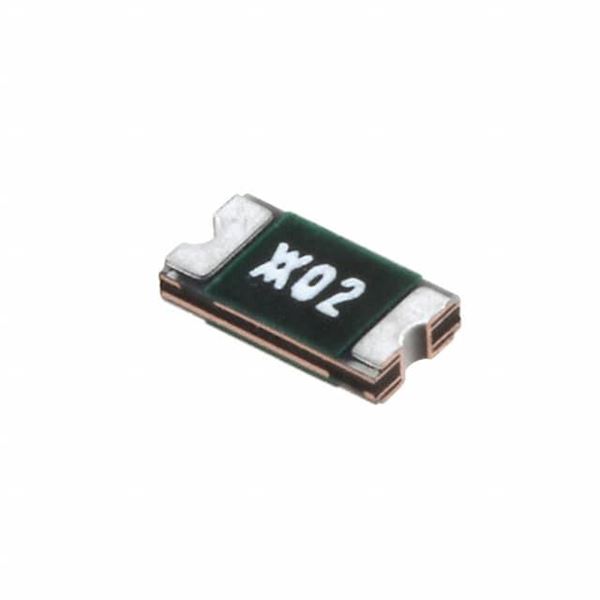

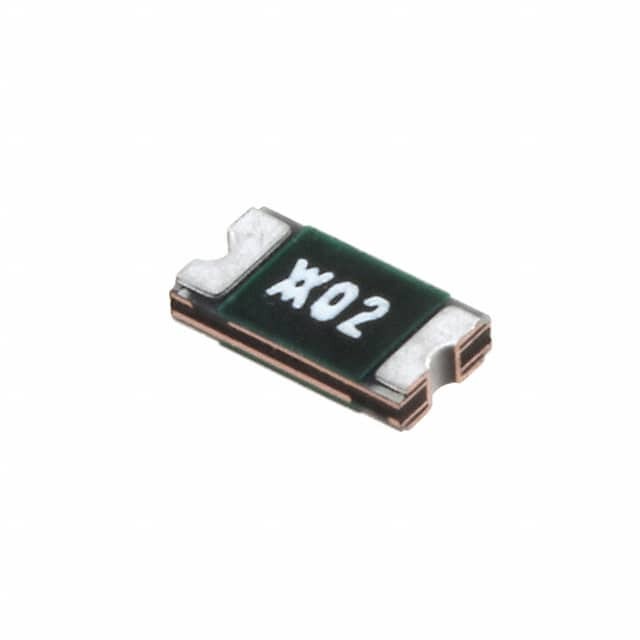

NANOSMDC150F-2

SKU: 34907

Manufacturer: Littelfuse

PTC Resettable Fuse 1.5A(hold) 3A(trip) 6VDC 100A 0.8W 0.3s 0.04Ohm SMD Solder Pad 1206 T/R Automotive

130810 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8533.40.80.70
Automotive	Unknown
PPAP	Unknown
Voltage Rating-Max	6VDC
Current Rating-Max(A)	100
Hold Current (A)	1.5
Trip Current (A)	3
Minimum Initial Resistance (Ohm)	0.04
Maximum Initial Resistance (Ohm)	0.11
Typical Power Dissipation (W)	0.8(Max)
Maximum Trip Time (s)	0.3@8A
Terminal Form	Solder Pad
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Size (mm)	3.4 X 1.8 X 0.89
Length (mm)	3.4(Max)
Depth (mm)	1.8(Max)
Height (mm)	0.89(Max)
Case Code - in	1206
