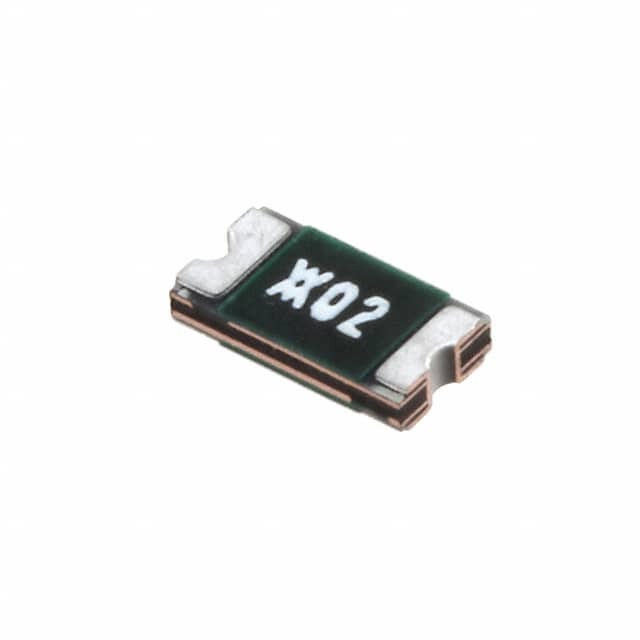

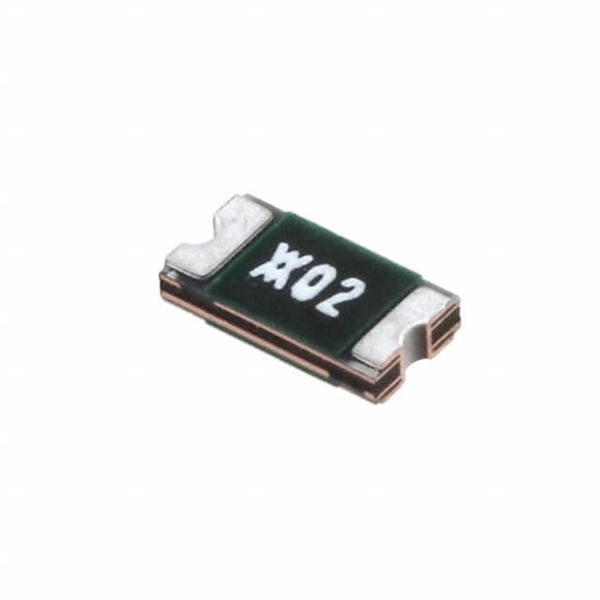

NANOASMDC035F-2

SKU: 136978

Manufacturer: Littelfuse

PTC Resettable Fuse 0.35A(hold) 0.75A(trip) 16VDC 20A 0.6W 0.1s 0.45Ohm SMD Solder Pad 3.4 X 1.8 X 0.82mm T/R Automotive

2450 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8533.40.80.70
Automotive	Yes
PPAP	Unknown
Voltage Rating-Max	16VDC
Current Rating-Max(A)	20
Hold Current (A)	0.35
Trip Current (A)	0.75
Minimum Initial Resistance (Ohm)	0.45
Maximum Post Trip Resistance (Ohm)	1.35
Typical Power Dissipation (W)	0.6
Maximum Trip Time (s)	0.1@3.5A
Terminal Form	Solder Pad
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Size (mm)	3.4 X 1.8 X 0.82
Length (mm)	3.4(Max)
Depth (mm)	1.8(Max)
Height (mm)	0.82(Max)
