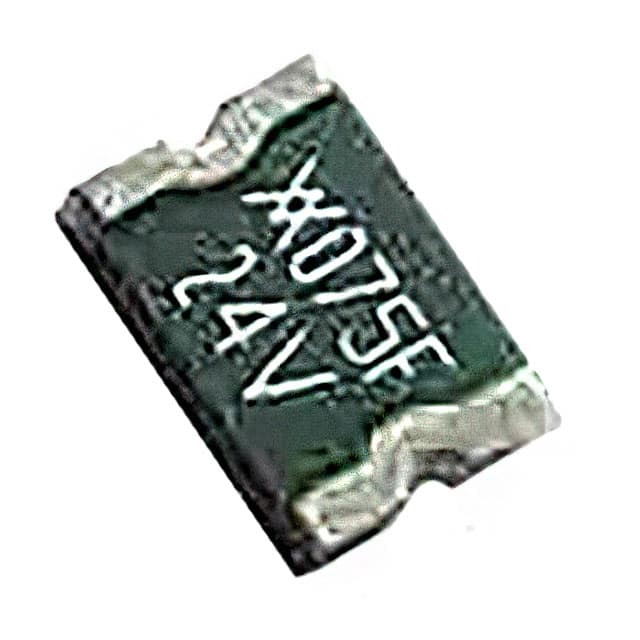

MINISMDC075F/33-2

SKU: 155170

Manufacturer: Littelfuse

PTC Resettable Fuse 0.75A(hold) 1.6A(trip) 33VDC 100A 1W 1s 0.11Ohm SMD Solder Pad 4.83 X 3.41 X 1.46mm T/R Automotive

4490 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8533.40.80.70
Automotive	Unknown
PPAP	Unknown
Voltage Rating-Max	33VDC
Current Rating-Max(A)	100
Hold Current (A)	0.75
Trip Current (A)	1.6
Minimum Initial Resistance (Ohm)	0.11
Maximum Initial Resistance (Ohm)	0.39
Typical Power Dissipation (W)	1
Maximum Trip Time (s)	1@8A
Terminal Form	Solder Pad
Number of Terminals	2
Size (mm)	4.83 X 3.41 X 1.46
Length (mm)	4.83(Max)
Depth (mm)	3.41(Max)
Height (mm)	1.46(Max)
