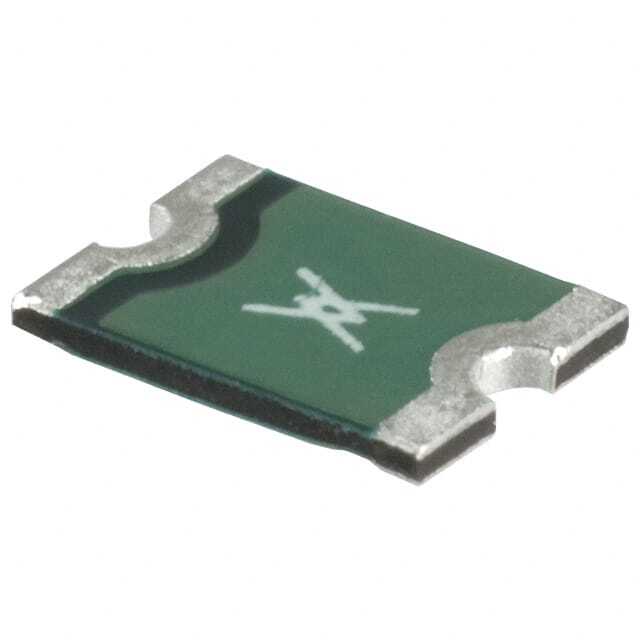

MINIASMDC150F/16-2

SKU: 143964

Manufacturer: Littelfuse

PTC Resettable Fuse 1.5A(hold) 2.8A(trip) 16VDC 100A 0.8W 0.5s 0.04Ohm SMD Solder Pad 1812 T/R

2310 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8533.40.80.70
Automotive	No
PPAP	No
Voltage Rating-Max	16VDC
Current Rating-Max(A)	100
Hold Current (A)	1.5
Trip Current (A)	2.8
Minimum Initial Resistance (Ohm)	0.04
Maximum Initial Resistance (Ohm)	0.11
Maximum Post Trip Resistance (Ohm)	0.11
Typical Power Dissipation (W)	0.8
Maximum Trip Time (s)	0.5@8A
Terminal Form	Solder Pad
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Size (mm)	4.83 X 3.41 X 0.48
Length (mm)	4.83(Max)
Depth (mm)	3.41(Max)
Height (mm)	0.48(Max)
Case Code - in	1812
