MINIASMDC075F/24-2

SKU: 158202

Manufacturer: Littelfuse

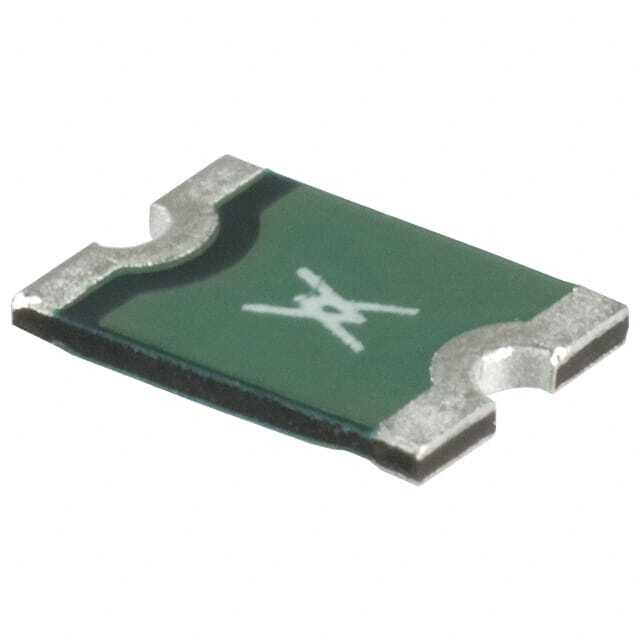

PTC Resettable Fuse 0.75A(hold) 1.5A(trip) 24VDC 40A 0.8W 0.3s 0.09Ohm SMD Solder Pad 4.83 X 3.41 X 1.46mm T/R Automotive

1560 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8533.40.80.70
Automotive	Yes
PPAP	Unknown
Voltage Rating-Max	24VDC
Current Rating-Max(A)	40
Hold Current (A)	0.75
Trip Current (A)	1.5
Minimum Initial Resistance (Ohm)	0.09
Maximum Initial Resistance (Ohm)	0.29
Maximum Post Trip Resistance (Ohm)	0.29
Typical Power Dissipation (W)	0.8
Maximum Trip Time (s)	0.3@8A
Terminal Form	Solder Pad
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Size (mm)	4.83 X 3.41 X 1.46
Length (mm)	4.83(Max)
Depth (mm)	3.41(Max)
Height (mm)	1.46(Max)
