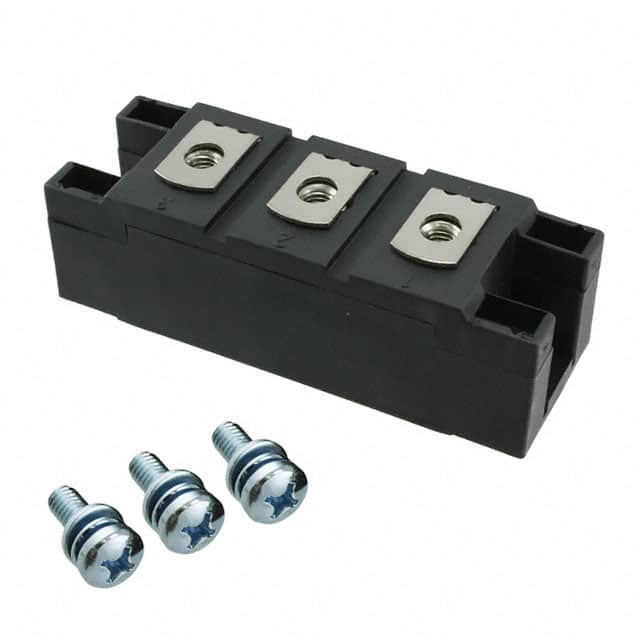

MEK350-02DA

SKU: 105373

Manufacturer: Littelfuse

Rectifier Diode Switching 200V 356A 200ns 3-Pin Y4-M6

3140 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Type	Switching Diode
Configuration	Dual Common Cathode
Peak Reverse Repetitive Voltage (V)	200
Maximum Continuous Forward Current (A)	356
Peak Non-Repetitive Surge Current (A)	2640
Peak Forward Voltage (V)	1.07@260A
Peak Reverse Current (uA)	3000
Peak Reverse Recovery Time (ns)	200
Operating Temperature-Min	-40
Operating Temperature-Max	150
Original Package	Y4-M6
Pin Count	3
Standard Package Method	Y4-M6
Terminal Form	Screw
Package Height	30
Package Length	94
Package Width	34
