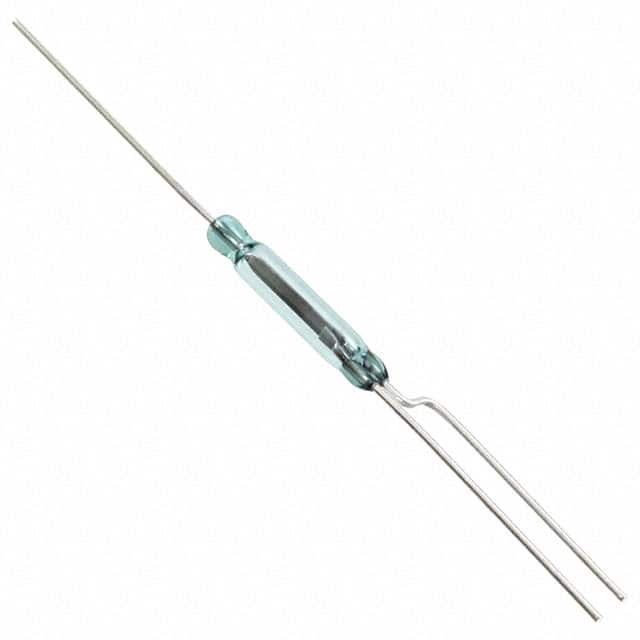

MDRR-DT-20-25-F

SKU: 126617

Manufacturer: Littelfuse

Switch Reed N.O./N.C. 0.25A 120VAC 175VDC 5VA 0.7ms 100mOhm

1300 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.50.90.65
Automotive	No
PPAP	No
Contact Form	Form C
Switch Configuration	N.O./N.C.
Current Rating-Max(A)	0.25
Maximum Current Carry (A)	1.5
Maximum Power Rating (VA)	5
Device Sensitivity Range (AT)	20 to 25
Dielectric Strength	200VDC
Maximum Operation Time (ms)	0.7
Maximum Release Time (ms)	1
Minimum Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	100
Terminal Form	Through Hole
Terminal Form	Axial
Seal Location	Contacts
Seal Description	Hermetic
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Bulk
Glass Length (mm)	14.73
Product Diameter (mm)	2.54
