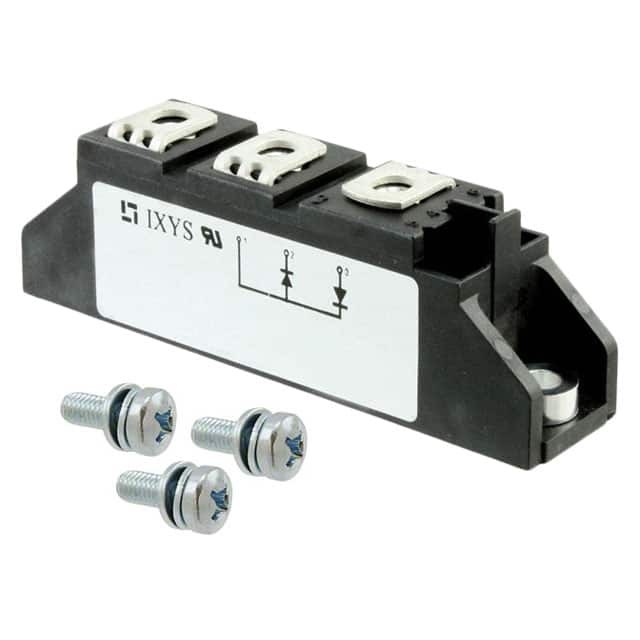

MDD56-18N1B Littelfuse

MDD56-18N1B

SKU: 23647

Manufacturer: Littelfuse

Rectifier Diode 1.8KV 71A 3-Pin TO-240AA Box

Download sample

Request Free Samples

2590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Configuration	Dual Series
Peak Reverse Repetitive Voltage (V)	1800
Maximum Continuous Forward Current (A)	71
Peak Non-Repetitive Surge Current (A)	1510
Peak Forward Voltage (V)	1.48@200A
Peak Reverse Current (uA)	200
Maximum Power Dissipation (mW)	245000
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Box
Original Package	TO-240AA
Pin Count	3
Terminal Form	Screw
Package Height	30
Package Length	92
Package Width	20.8
