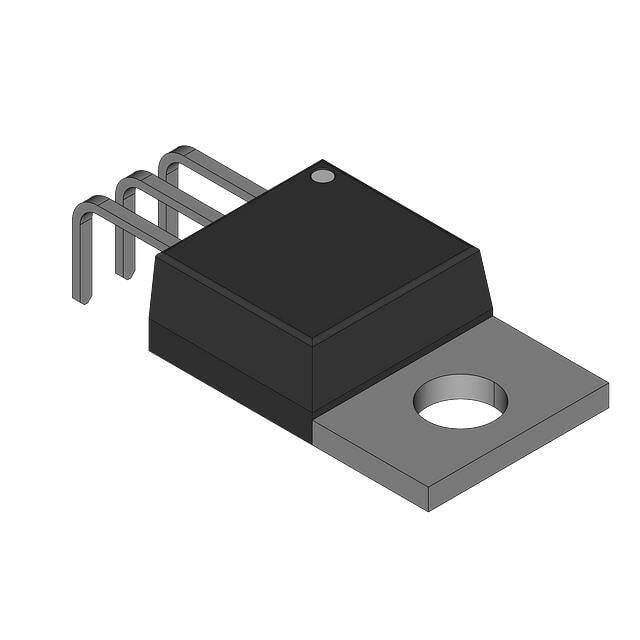

MCR218-6G

SKU: 34689

Manufacturer: Littelfuse

SCR Diode 400V 12A(RMS) 100A 3-Pin(3+Tab) TO-220AB Box

3470 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.30.00.80
Automotive	No
PPAP	No
Maximum Rate of Rise of Off-State Voltage (V/us)	10(Min)
Maximum Rate of Rise of On-State Current (A/us)	75
Maximum Gate Trigger Voltage (V)	1.5
Maximum Gate Trigger Current (mA)	30
Surge Current Rating (A)	100
Maximum Holding Current (mA)	50
Repetitive Peak Reverse Voltage (V)	400
Peak On-State Voltage (V)	2.2@24A
Repetitive Peak Forward Blocking Voltage (V)	400
RMS On-State Current (A)	12
Repetitive Peak Off-State Current (mA)	0.01
Maximum Latching Current (mA)	80
Peak Gate Power Dissipation (W)	20
Average Gate Power Dissipation (W)	0.5
Circuit Fusing Consideration (A²S)	40
Phase Control	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Original Package	TO-220AB
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	9.28(Max)
Package Length	10.67(Max)
Package Width	4.78(Max)
PCB changed	3
Tab	Tab
