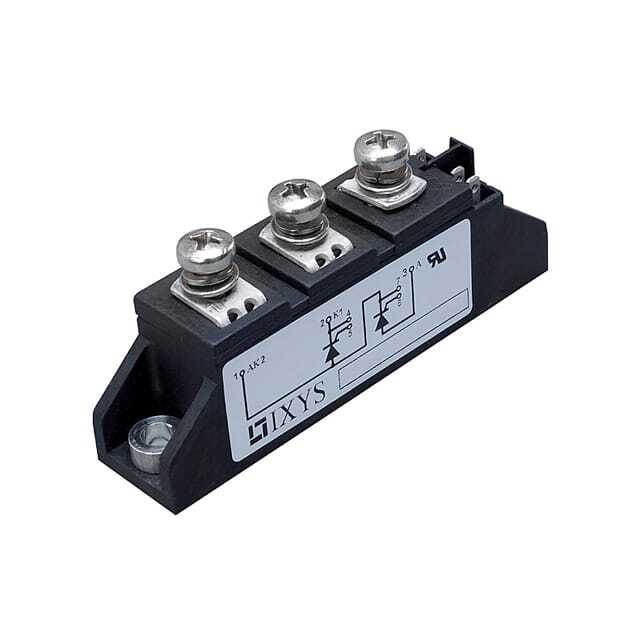

MCC72-16IO1B

SKU: 27545

Manufacturer: Littelfuse

SCR Module Diode 1600V 133A(RMS) 1840A 7-Pin TO-240AA

1960 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Active
Automotive	No
PPAP	No
Maximum Gate Trigger Voltage (V)	2.5
Maximum Gate Trigger Current (mA)	150
Surge Current Rating (A)	1840
Maximum Holding Current (mA)	200
Repetitive Peak Reverse Voltage (V)	1600
Maximum Gate Peak Inverse Voltage (V)	10
Peak On-State Voltage (V)	1.74@300A
Repetitive Peak Forward Blocking Voltage (V)	1600
Rated Average On-State Current (A)	85
RMS On-State Current (A)	133
Repetitive Peak Off-State Current (mA)	5
Phase Control	No
Operating Temperature-Min	-40
Operating Temperature-Max	100
Original Package	TO-240AA
Pin Count	7
Terminal Form	Screw
Package Height	30
Package Length	92
Package Width	20.8
