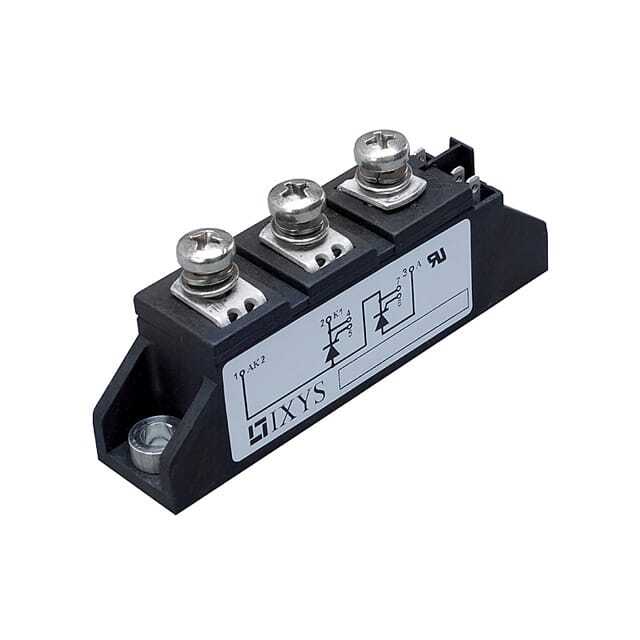

MCC26-12IO1B

SKU: 13407

Manufacturer: Littelfuse

SCR Module Diode 1200V 42A(RMS) 560A 7-Pin TO-240AA Box

2730 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.30.00.80
Automotive	No
PPAP	No
Maximum Rate of Rise of Off-State Voltage (V/us)	1000
Maximum Rate of Rise of On-State Current (A/us)	500
Maximum Gate Trigger Voltage (V)	1.5
Maximum Gate Trigger Current (mA)	100
Surge Current Rating (A)	560
Maximum Holding Current (mA)	200
Repetitive Peak Reverse Voltage (V)	1200
Maximum Gate Peak Inverse Voltage (V)	10
Peak On-State Voltage (V)	1.64@80A
Repetitive Peak Forward Blocking Voltage (V)	1200
Rated Average On-State Current (A)	27
RMS On-State Current (A)	42
Repetitive Peak Off-State Current (mA)	0.1
Phase Control	No
Operating Temperature-Min	-40
Operating Temperature-Max	100
Original Package	TO-240AA
Pin Count	7
Terminal Form	Screw
Package Height	30
Package Length	92
Package Width	20.8
