LTKAK6-076C

SKU: 16527

Manufacturer: Littelfuse

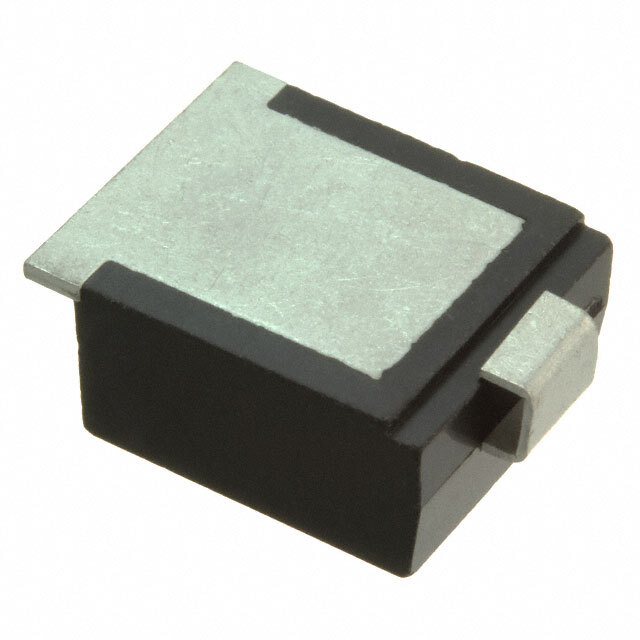

Diode TVS Single 76V 2-Pin SMTO-218 T/R

3090 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Configuration	Single
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	85
Maximum Clamping Voltage (V)	140
Maximum Reverse Stand-Off Voltage (V)	76
Maximum Peak Pulse Current (A)	6000(Min)
Maximum Reverse Leakage Current (uA)	10
Test Current (mA)	10
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	SMTO-218
Pin Count	2
Terminal Form	Surface Mount
Package Height	7.24(Max)
Package Length	15.09(Max)
Package Width	14.24(Max)
