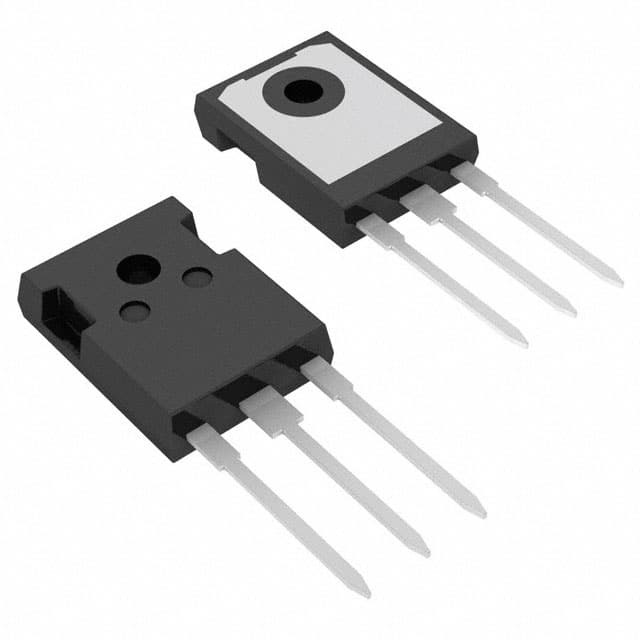

IXXH60N65B4H1

SKU: 89825

Manufacturer: Littelfuse

Trans IGBT Chip N-CH 650V 116A 455000mW 3-Pin(3+Tab) TO-247AD

3860 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Technology	XPT
Channel Type	N
Configuration	Single
Maximum Gate Emitter Voltage (V)	±20
Collector-Emitter Voltage-Max (V)	650
Typical Collector Emitter Saturation Voltage (V)	1.7
Maximum Continuous Collector Current (A)	116
Maximum Gate Emitter Leakage Current (uA)	0.1
Maximum Power Dissipation (mW)	455000
Operating Temperature-Min	-55
Operating Temperature-Max	175
Original Package	TO-247AD
Pin Count	3
Terminal Form	Through Hole
Package Height	21.46(Max)
Package Length	16.26(Max)
Package Width	5.3(Max)
PCB changed	3
