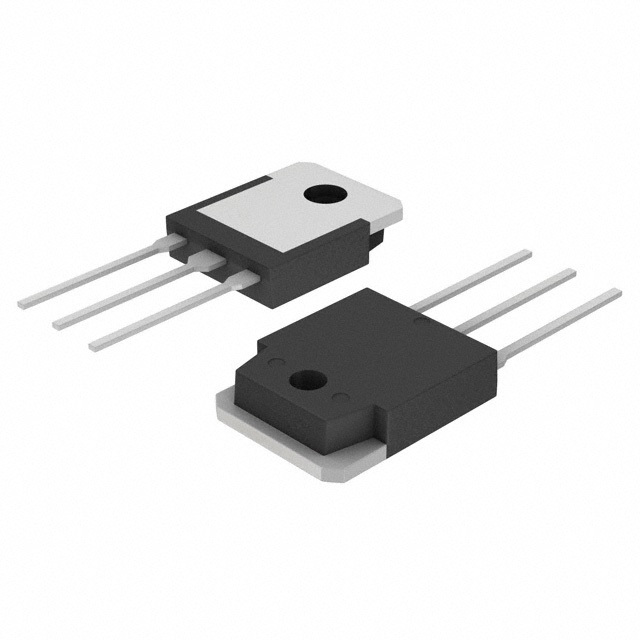

IXTQ76N25T

SKU: 96910

Manufacturer: Littelfuse

Trans MOSFET N-CH 250V 76A 3-Pin(3+Tab) TO-3P

10 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
Part Status	Unconfirmed
Automotive	No
PPAP	No
Product Category	Power MOSFET
Process Technology	TrenchFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	250
Maximum Gate Source Voltage (V)	±30
Maximum Continuous Drain Current (A)	76
Maximum Drain Source Resistance (mOhm)	44@10V
Typical Gate Charge @ Vgs (nC)	92@10V
Typical Gate Charge @ 10V (nC)	92
Typical Input Capacitance @ Vds (pF)	4920@25V
Maximum Power Dissipation (mW)	460000
Typical Fall Time (ns)	29
Typical Rise Time (ns)	25
Typical Turn-Off Delay Time (ns)	56
Typical Turn-On Delay Time (ns)	22
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	TO-3P
Pin Count	3
Terminal Form	Through Hole
Package Length	15.8(Max)
Package Width	4.9(Max)
PCB changed	3
