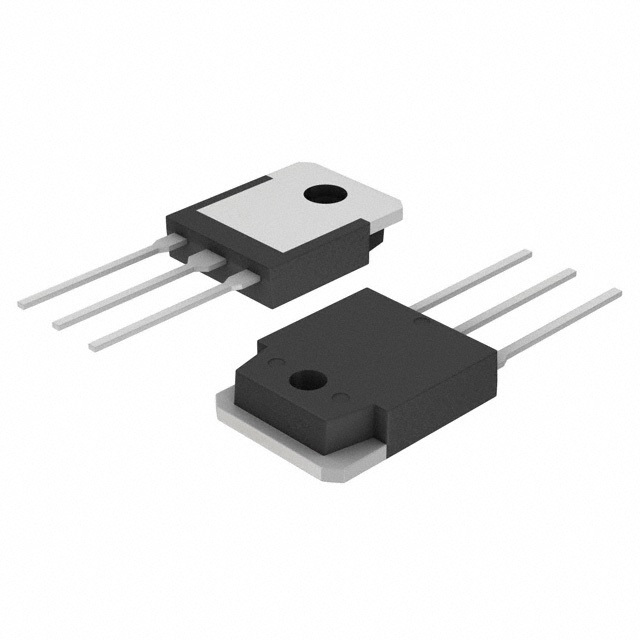

IXTQ480P2

SKU: 75690

Manufacturer: Littelfuse

Trans MOSFET N-CH 500V 52A 3-Pin(3+Tab) TO-3P

1020 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	500
Maximum Gate Source Voltage (V)	±30
Maximum Continuous Drain Current (A)	52
Maximum Drain Source Resistance (mOhm)	120@10V
Typical Gate Charge @ Vgs (nC)	108@10V
Typical Gate Charge @ 10V (nC)	108
Typical Input Capacitance @ Vds (pF)	6800@25V
Maximum Power Dissipation (mW)	960000
Typical Fall Time (ns)	8
Typical Rise Time (ns)	11
Typical Turn-Off Delay Time (ns)	40
Typical Turn-On Delay Time (ns)	22
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	TO-3P
Pin Count	3
Terminal Form	Through Hole
Package Length	15.8(Max)
Package Width	4.9(Max)
PCB changed	3
