IXTQ26N50P

SKU: 146506

Manufacturer: Littelfuse

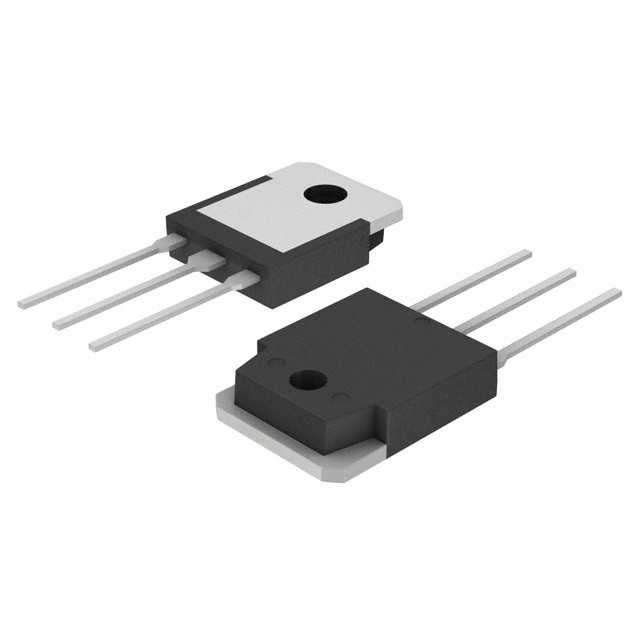

Trans MOSFET N-CH 500V 26A 3-Pin(3+Tab) TO-3P

680 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	500
Maximum Gate Source Voltage (V)	±30
Maximum Continuous Drain Current (A)	26
Maximum Drain Source Resistance (mOhm)	230@10V
Typical Gate Charge @ Vgs (nC)	65@10V
Typical Gate Charge @ 10V (nC)	65
Typical Input Capacitance @ Vds (pF)	3600@25V
Maximum Power Dissipation (mW)	400000
Typical Fall Time (ns)	20
Typical Rise Time (ns)	25
Typical Turn-Off Delay Time (ns)	58
Typical Turn-On Delay Time (ns)	20
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	TO-3P
Pin Count	3
Standard Package Method	TO-3P
Terminal Form	Through Hole
Package Length	15.8(Max)
Package Width	4.9(Max)
PCB changed	3
Tab	Tab
