IXTQ130N10T

SKU: 103928

Manufacturer: Littelfuse

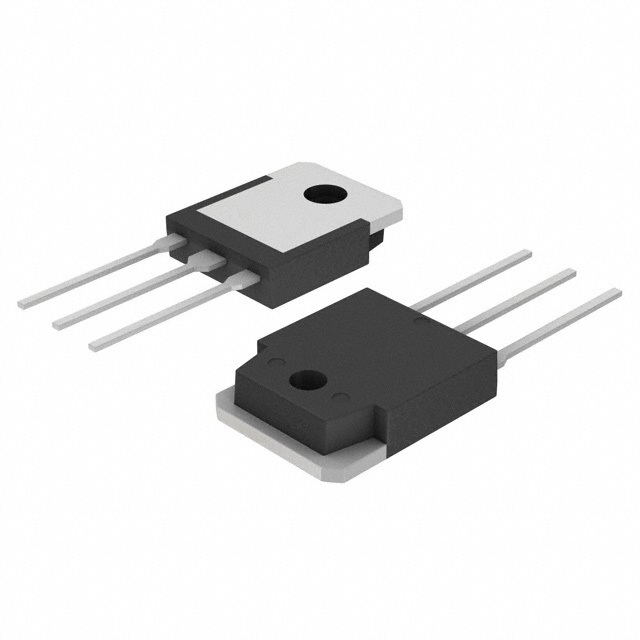

Trans MOSFET N-CH 100V 130A Automotive 3-Pin(3+Tab) TO-3P

380 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
Part Status	Active
Automotive	Unknown
PPAP	Unknown
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	100
Maximum Continuous Drain Current (A)	130
Maximum Drain Source Resistance (mOhm)	9.1@10V
Typical Gate Charge @ Vgs (nC)	104@10V
Typical Gate Charge @ 10V (nC)	104
Typical Input Capacitance @ Vds (pF)	5080@25V
Maximum Power Dissipation (mW)	360000
Typical Fall Time (ns)	28
Typical Rise Time (ns)	47
Typical Turn-Off Delay Time (ns)	44
Typical Turn-On Delay Time (ns)	30
Operating Temperature-Min	-55
Operating Temperature-Max	175
Original Package	TO-3P
Pin Count	3
Standard Package Method	TO-3P
Terminal Form	Through Hole
Package Length	15.8(Max)
Package Width	4.9(Max)
PCB changed	3
Tab	Tab
