IXTA86N20T

SKU: 153678

Manufacturer: Littelfuse

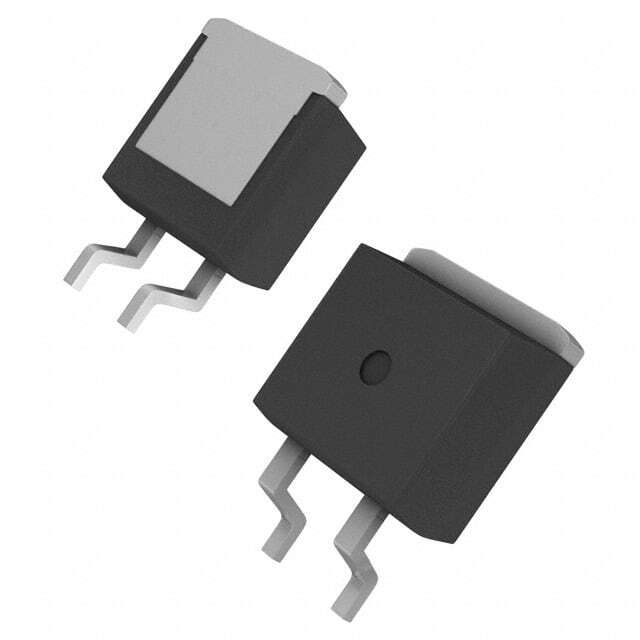

Trans MOSFET N-CH 200V 86A 3-Pin(2+Tab) D2PAK

2620 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Active
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	200
Maximum Continuous Drain Current (A)	86
Maximum Drain Source Resistance (mOhm)	33@10V
Typical Gate Charge @ Vgs (nC)	90@10V
Typical Gate Charge @ 10V (nC)	90
Typical Input Capacitance @ Vds (pF)	4500@25V
Maximum Power Dissipation (mW)	550000
Typical Fall Time (ns)	29
Typical Rise Time (ns)	24
Typical Turn-Off Delay Time (ns)	52
Typical Turn-On Delay Time (ns)	22
Operating Temperature-Min	-55
Operating Temperature-Max	175
Original Package	D2PAK
Pin Count	3
Standard Package Method	TO-263
Terminal Form	Surface Mount
Package Height	4.83(Max)
Package Length	10.41(Max)
Package Width	9.4(Max)
PCB changed	2
Tab	Tab
