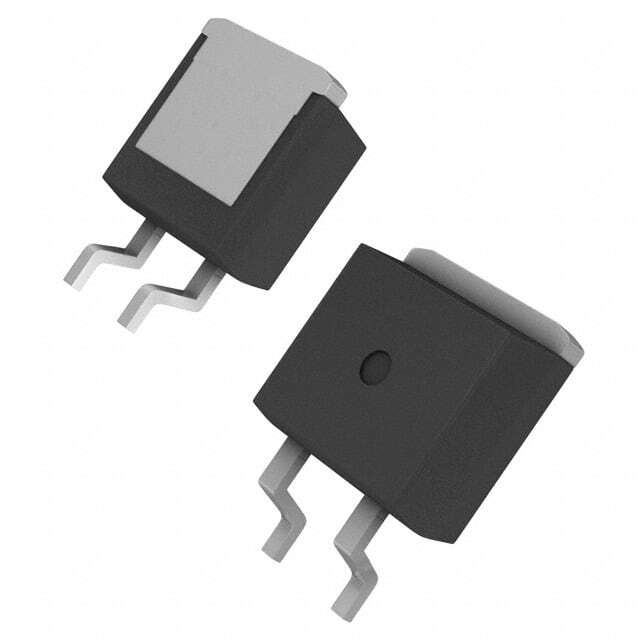

    IXTA36P15P

    SKU: 61704
    Manufacturer: Littelfuse
    Trans MOSFET P-CH 150V 36A 3-Pin(2+Tab) D2PAK
    1880 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8541.29.00.95
    Automotive No
    PPAP No
    Product Category Power MOSFET
    Configuration Single
    Channel Mode Enhancement
    Channel Type P
    Number of Elements per pcs 1
    Maximum Drain Source Voltage (V) 150
    Maximum Gate Source Voltage (V) ±20
    Maximum Gate Threshold Voltage (V) 4.5
    Maximum Continuous Drain Current (A) 36
    Maximum Gate Source Leakage Current (nA) 100
    Maximum IDSS (uA) 10
    Maximum Drain Source Resistance (mOhm) 110@10V
    Typical Gate Charge @ Vgs (nC) 55@10V
    Typical Gate Charge @ 10V (nC) 55
    Typical Input Capacitance @ Vds (pF) 3100@25V
    Maximum Power Dissipation (mW) 300000
    Typical Fall Time (ns) 15
    Typical Rise Time (ns) 31
    Typical Turn-Off Delay Time (ns) 36
    Typical Turn-On Delay Time (ns) 21
    Operating Temperature-Min -55
    Operating Temperature-Max 150
    Original Package D2PAK
    Pin Count 3
    Standard Package Method TO-263
    Terminal Form Surface Mount
    Package Height 4.83(Max)
    Package Length 10.41(Max)
    Package Width 9.4(Max)
    PCB changed 2
    Tab Tab
