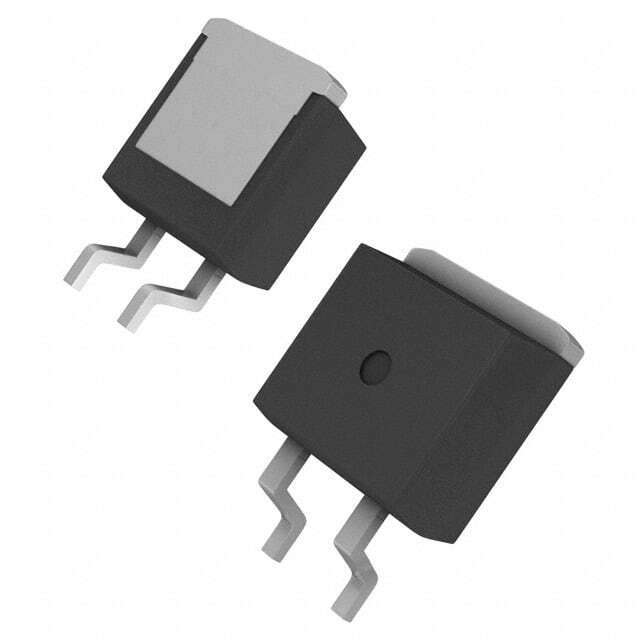

IXTA16N50P

SKU: 111071

Manufacturer: Littelfuse

Trans MOSFET N-CH 500V 16A 3-Pin(2+Tab) D2PAK

1730 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Process Technology	PolarHT
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	500
Maximum Gate Source Voltage (V)	±30
Maximum Continuous Drain Current (A)	16
Maximum Drain Source Resistance (mOhm)	400@10V
Typical Gate Charge @ Vgs (nC)	43@10V
Typical Gate Charge @ 10V (nC)	43
Typical Input Capacitance @ Vds (pF)	2480@25V
Maximum Power Dissipation (mW)	300000
Typical Fall Time (ns)	22
Typical Rise Time (ns)	25
Typical Turn-Off Delay Time (ns)	70
Typical Turn-On Delay Time (ns)	23
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	D2PAK
Pin Count	3
Terminal Form	Surface Mount
Package Height	4.83(Max)
Package Length	10.41(Max)
Package Width	9.65(Max)
PCB changed	2
