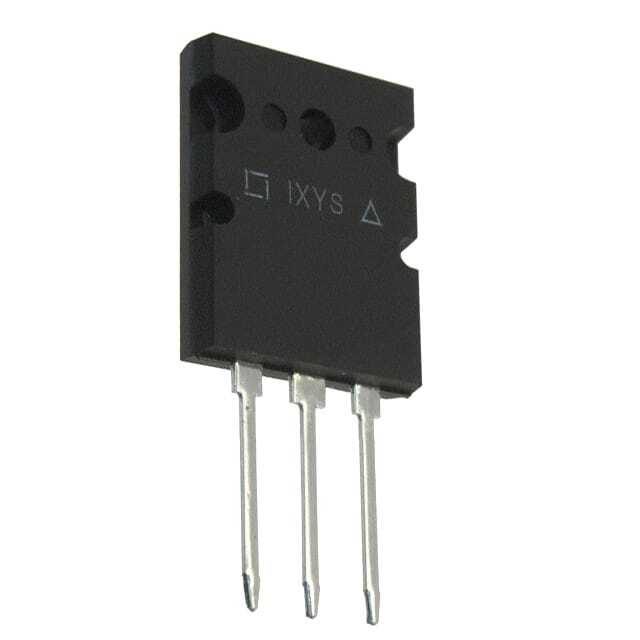

IXGK64N60B3D1

SKU: 19175

Manufacturer: Littelfuse

Trans IGBT Chip N-CH 600V 64A 460000mW 3-Pin(3+Tab) TO-264

1390 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
Part Status	Obsolete
Automotive	No
PPAP	No
Channel Type	N
Configuration	Single
Maximum Gate Emitter Voltage (V)	±20
Collector-Emitter Voltage-Max (V)	600
Typical Collector Emitter Saturation Voltage (V)	1.59
Maximum Continuous Collector Current (A)	64
Maximum Gate Emitter Leakage Current (uA)	0.1
Maximum Power Dissipation (mW)	460000
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	TO-264
Pin Count	3
Terminal Form	Through Hole
Package Height	26.16(Max)
Package Length	19.96(Max)
Package Width	5.13(Max)
PCB changed	3
