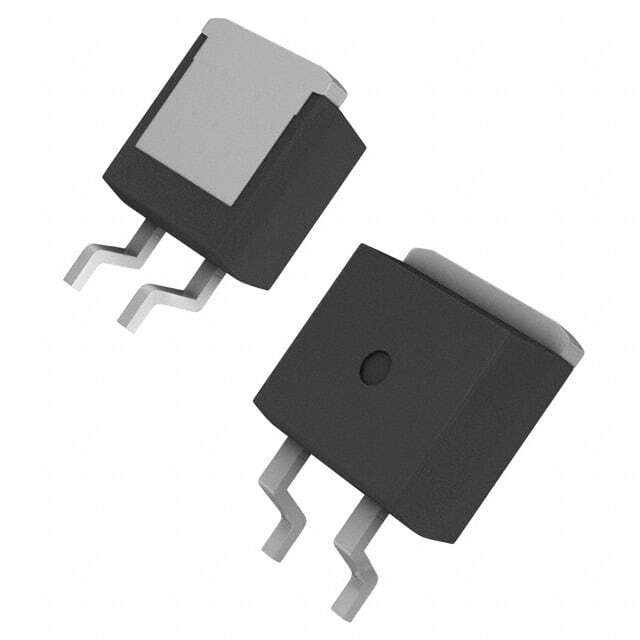

IXGA48N60A3

SKU: 118161

Manufacturer: Littelfuse

Trans IGBT Chip N-CH 600V 48A 300000mW 3-Pin(2+Tab) D2PAK

2140 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Active
Automotive	No
PPAP	No
Channel Type	N
Configuration	Single
Maximum Gate Emitter Voltage (V)	±20
Collector-Emitter Voltage-Max (V)	600
Typical Collector Emitter Saturation Voltage (V)	1.18
Maximum Continuous Collector Current (A)	48
Maximum Gate Emitter Leakage Current (uA)	0.1
Maximum Power Dissipation (mW)	300000
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	D2PAK
Pin Count	3
Terminal Form	Surface Mount
Package Height	4.83(Max)
Package Length	10.41(Max)
Package Width	9.65(Max)
PCB changed	2
