IXGA20N120A3

SKU: 61699

Manufacturer: Littelfuse

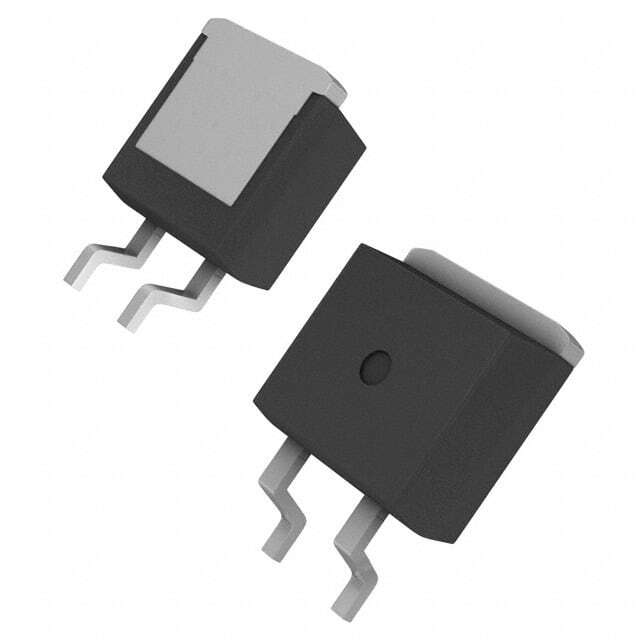

Trans IGBT Chip N-CH 1200V 40A 180000mW 3-Pin(2+Tab) D2PAK

1490 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Channel Type	N
Configuration	Single
Maximum Gate Emitter Voltage (V)	±20
Collector-Emitter Voltage-Max (V)	1200
Typical Collector Emitter Saturation Voltage (V)	2.3
Maximum Continuous Collector Current (A)	40
Maximum Gate Emitter Leakage Current (uA)	0.1
Maximum Power Dissipation (mW)	180000
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	D2PAK
Pin Count	3
Standard Package Method	TO-263
Terminal Form	Surface Mount
Package Height	4.83(Max)
Package Length	10.41(Max)
Package Width	9.4(Max)
PCB changed	2
Tab	Tab
