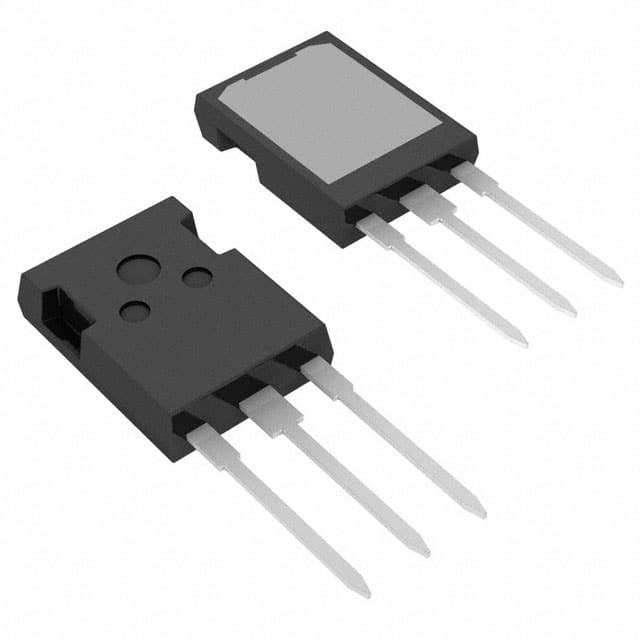

IXFX150N30P3

SKU: 19172

Manufacturer: Littelfuse

Trans MOSFET N-CH 300V 150A 3-Pin(3+Tab) PLUS 247

3680 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Process Technology	HiperFET
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	300
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	5
Maximum Continuous Drain Current (A)	150
Maximum Gate Source Leakage Current (nA)	200
Maximum IDSS (uA)	25
Maximum Drain Source Resistance (mOhm)	19@10V
Typical Gate Charge @ Vgs (nC)	197@10V
Typical Gate Charge @ 10V (nC)	197
Typical Input Capacitance @ Vds (pF)	12100@25V
Maximum Power Dissipation (mW)	1300000
Typical Fall Time (ns)	12
Typical Rise Time (ns)	30
Typical Turn-Off Delay Time (ns)	74
Typical Turn-On Delay Time (ns)	44
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	PLUS 247
Pin Count	3
Terminal Form	Through Hole
Package Height	21.34(Max)
Package Length	16.13(Max)
Package Width	5.21(Max)
PCB changed	3
